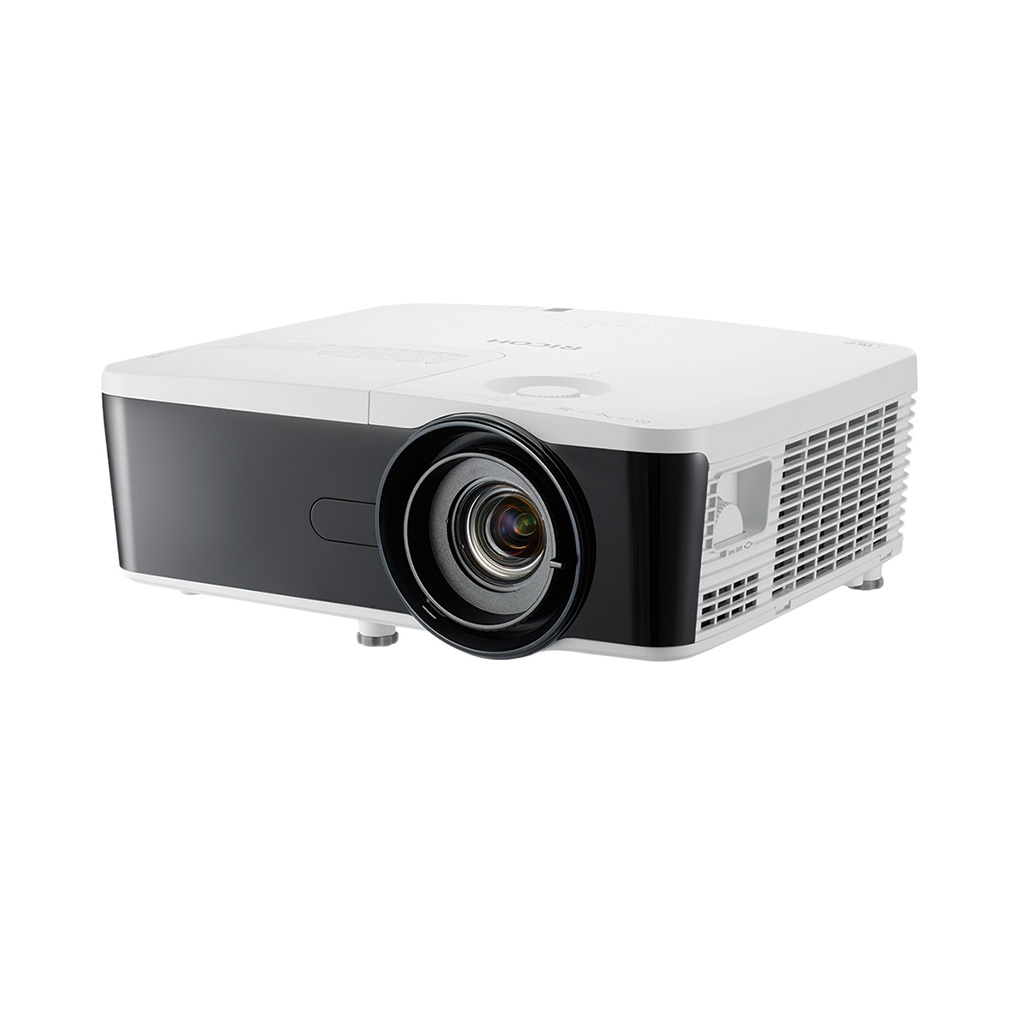

PJ X5580 6,000-lumen standard projector

  • 1,024 x 768 pixels (XGA)
  • 4,000-hour lamp life (Eco)
  • 30–300-inch projection size
  • 10 W stereo speakers

Make a big impact at conferences and seminars with HD display projection

Deliver big sound and imagery at conferences and auditoriums. The PJ X5580 is ideal for audiences of up to 50, with bright visuals and high contrast.

Adaptable and affordable

The projector that can adjust to your needs, whether you need to project onto a big screen up to 300 inches or as little as 30. High quality resolution and contrast for impressive performance. Connect via a choice of ports for simple operation and the ability to showcase from a choice of file formats. Choose the most appropriate place to project with vertical and horizontal lens shift and keystone correction.

  1. More ways to connect
    Choose from multiple HDMI ports, LAN connection, DisplayPort, VGA and USB ports to plug in almost any device.
  2. Keep your audience engaged with high‑definition
    Project brilliant, lifelike reproductions on almost any surface up to 300 inches.
  3. Your message stays clear
    The PJ X5580 does most of the work for you with automatic colour correction capabilities, and keystone correction to fix image distortion.
  4. Keep colours bright and details sharp
    Presentations won't be washed out with 6,000 lumens, and a contrast ratio of 9,000:1 adds more definition between light and dark colours.
Download PDF brochure

Specifications

Projector type
Standard
What's included

CD-ROM
Includes instruction manual in Japanese, English, and Chinese

Read first manual
In English, German, French, Spanish, Italian, and Portuguese

Signal cable
RGB cable

Power cord
Yes

Remote control
Yes

Battery for remote control
AAA x 2

Carrier bag
No

Filter
Yes—built-in

Lens cap
Yes

Physical dimensions (WxDxH)—mainframe
424 x 356 x 150 mm
Weight—mainframe
6.35 kg or less
Projection system
DLP
Contrast
9,000:1—Image Eco Mode
Aspect ratio
4:3
Brightness
6,000 lumens
Resolution
1,024 x 768 pixels (XGA)
Light source life
3,000h/4,000h (Eco)
Lamp type
High-pressure mercury lamp
Lamp wattage
365 W—Standard Mode
292 W—Eco Mode
Lens type
Built-in
Lens focal length
f:17.63–31.36 mm
Lens aperture
F:2.3–3.45
Zoom type
Manual
Zoom ratio
1:8x
Focus method
Manual
Projection size
30–300 inches
Projection distance
1.0–13.5 m
Projection ratio
1.241–2.222
Lens shift
Manual
Vertical 95–105%
Horizontal ±10%
Keystone correction
Vertical and horizontal ±30º
Projector modes
Standard, Rear, Ceiling, Rear ceiling
Speaker
10 W x 2
Other supported features
AV Mute, Freeze, Resize (magnify), Wall colour mode,  User logo, USB firmware update
Interfaces - standard
Input
Computer IN terminal
D-SUB 15-pin x 2

Composite video terminal
RCA x 1-pin x 1

S-video terminal
Mini DIN 4-pin x 1

Digital terminal
HDMI (MHL-compatible) x 1
HDMI x 1

DisplayPort
DisplayPort x 1

Audio IN terminals
3.5 mm mini jack x 2

Microphone
3.5 mm mini jack x 1

PC control terminal
D-SUB 9-pin x 1 (RS-232C)

Service terminal
USB Mini Type B x 1

Output
Monitor OUT terminal
D-SUB 15-pin x 1

Audio OUT terminal
3.5 mm mini jack x 1

Network
LAN connectivity
RJ-45 x 1

Wireless LAN
Optional

Other
3D Sync
Mini DIN 3-pin x 1

12V trigger
3.5 mm mini jack x 1
Kensington lock
Yes
Password protection of device
Yes
Supported languages

Menu languages
Japanese, English, German, French, Italian, Spanish, Polish, Swedish, Thai, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Indonesian, Turkish, Norwegian, Finnish, Czech, Hungarian, Danish, Dutch

Instruction manual
Japanese, English, and Chinese

Read first manual
English, German, French, Spanish, Italian, and Portuguese

Power source
100–240 V, 50–60 Hz
Power consumption

Full mode
425 W—typical
470 W—maximum

Eco Mode
350 W—typical
385 W—maximum

Standby Mode
0.5 W or less—Monitor out off
1.0 W or less—Monitor out on

Sound power level
35 dB or less—Standard Mode
32 dB or less—Eco Mode
Safety standards
EN60950-1 (CE Marking, TUV)
IEC60950-1 (CB attestation, PSB)
Restriction of Hazardous Substances (RoHS)
REACH
EuP (Lot 6)
Battery Directive 2006/66/EC and 2005/20/EC
WEEE
Electromagnetic Compatibility (EMC) standards
EN55022
EN61000-3-2
EN61000-3-3
EN55024 (CE Marking)
AS/NZS CISPR22 (C-Tick)
Operating environment

Operating
5 to 40ºC—temperature
20 to 80% non-condensing—relative humidity

Storage
-20 to 60ºC—temperature
20 to 80% non-condensing—relative humidity

Other environmental features
Eco Mode
Projection Calculator

Use this convenient tool to estimate the throw distance for selected Ricoh projectors. It is not intended to provide exact measurements.

Please click the link to visit the Projection Calculator.
