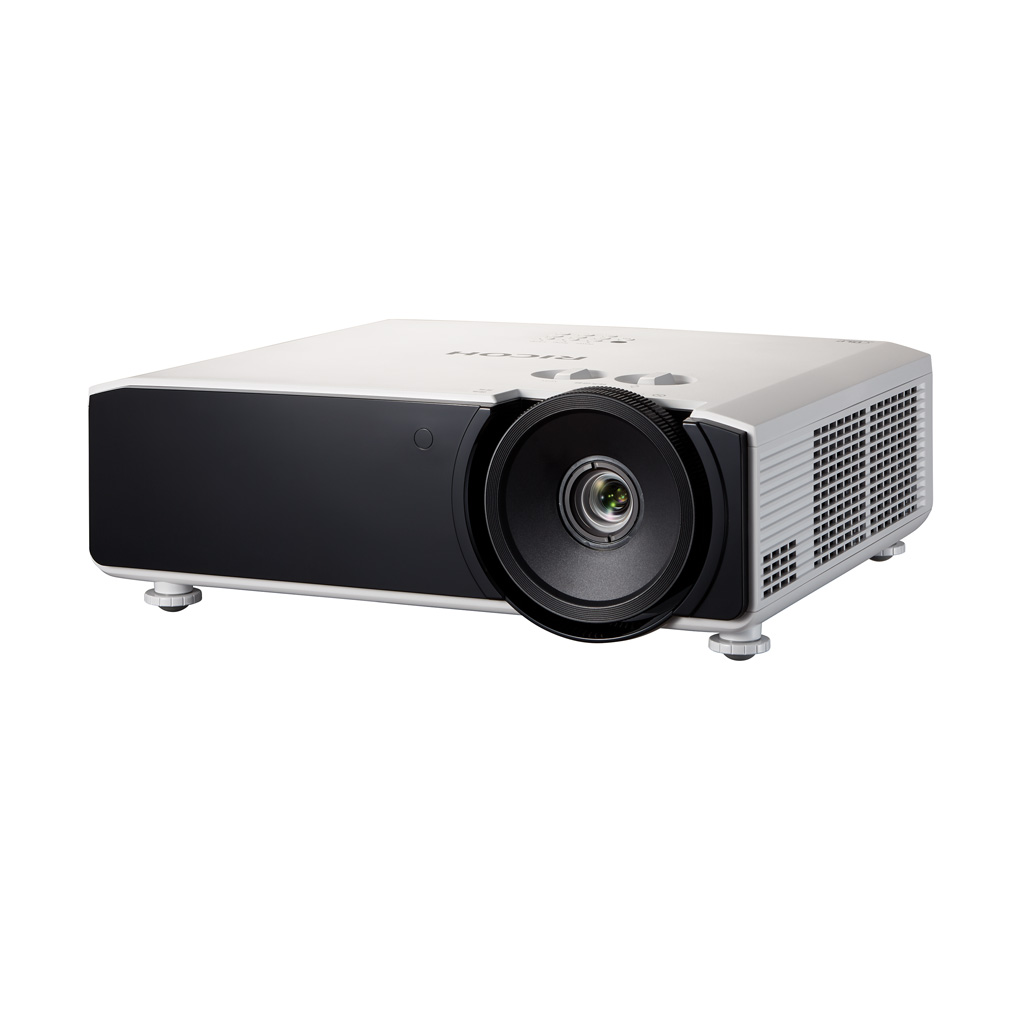

PJ WUL5970 5,500-lumen standard laser projector

  • 1,920 x 1,200 pixels (WUXGA)
  • 20,000-hour laser life
  • Maintenance-free projection
  • Instant ON
Related Links
From small ideas, big opportunities grow

Meetings, events and exhibitions can drive change. Point a spotlight on your ideas.

Make a brilliant first impression with high-impact projection

Whatever your choice of media, the PJ WUL5970 can handle it all, delivering high-quality resolution to your images, videos and presentations.

Light that keeps on giving

The PJ WUL5970 features laser light source that allows you to shine a bright light on 20,000 hours of stunning presentations and videos at meetings, exhibitions and events. Run seamless presentations thanks to its quick start time of less than 10 seconds. You also use the HDBaseT to operate conveniently and neatly with just one cable.

  1. Durable laser light source
    Laser light source delivers 20,000 hours of presentations
  2. Stunning visuals
    6400 lumens, 16:10 screen aspect ratio enables crystal-clear HD presentations
  3. Flawless image with every display
    Perfect projection every time with vertical and horizontal keystone and lens shift, and four corner adjustment
  4. Multi-angle projection
    A flexible feature that enables you to project from any direction

Download PDF brochure

Specifications

Projector type
Standard laser
What's included

Cables
Power cable
VGA cable

Remote control
Standard

Battery for remote control
2 x AAA size included

Quick Start Guide
10 languages

Carrier bag
No

Lens cap
No

CD-ROM
Included

Physical dimensions (WxDxH)—mainframe
450 x 381 x 132 mm
Weight—mainframe
7.8 kg
Projection system
Standard laser
Contrast
300:1—Native Mode (ANSI)
50,000:1—High Contrast Mode
Aspect ratio
16:10
Brightness
5,500 lumens
Resolution
1,920 x 1,200 pixels (WUXGA)
Light source
Laser
Light source life
20,000h
Lens focal length
f:14.3–22.9 mm
Lens aperture
F:1.81–2.1
Zoom type
Digital, manual
Zoom ratio
1.6x
Focus method
Manual
Colour reproduction
92%
Projection size
60–300 inches
Projection distance
1.75–8.76 m
Projection ratio
1.36–2.18
Tilt angle
0–1.9°
Lens shift
Vertical—±50%
Horizontal—±23%
Keystone correction
Vertical—±30 degree—manual
Horizontal—±30 degree—manual
Four corner adjustment
Supported
Projector modes
Standard, Ceiling, Rear, Rear Ceiling
3D support
DLP Link, Auto, Side-by-side, Top and bottom, Frame sequential
Speaker
10 W, mono
Other supported features
Instant ON, Quick Power On, Remote ID up to 8, Dust proof design (IP5X), User logo, High contrast mode, Color Control (HSG, Memory, Memory by picture mode, Memory by input), Power On by AC input, Power On by Signal input, Quick shutdown—5 seconds, Skip input (Auto input search), Keep input on signal lost, Digital Zoom, Freeze, Audio and visual mute, Test pattern (white, black, mesh, colour bar), 360-degree projection (Pitch angle—Yes, Roll angle—No, Normal and Ceiling mode only), Separate AC inlet, 1 x IR receiver, 8 m remote control distance
Interfaces - standard

Computer IN
D-sub 15-pin x 1

Monitor OUT
D-sub 15-pin x 1

Audio input terminal
Mini jack 3.5 mm x 1

Audio output terminal
Mini jack 3.5 mm x 1

Control terminal
D-sub 9-pin RS-232C x 1 (PC Control)
RJ45 LAN x 1

USB terminal
USB Type A x 1
Mini USB Type B x 1

Digital terminal
HDBaseT x 1 (RJ45)
HDMI1 Type A x 1
HDMI2/MHL Type A x 1

Kensington lock
Yes
Password protection of device
Yes
Other security features
Security lock
Supported languages

On screen display languages
English, German, French, Italian, Spanish, Portuguese, Swedish, Russian, Polish, Japanese, Simplified Chinese, Thai, Traditional Chinese, Arabic, Indonesian, Turkish, Norwegian, Danish, Dutch

User manual languages
English, German, French, Italian, Spanish, Portuguese, Swedish, Russian, Polish, Japanese, Simplified Chinese, Thai, Traditional Chinese, Arabic, Indonesian, Turkish, Norwegian, Danish, Dutch

Quick Start Guide languages
English, German, French, Italian, Spanish, Portuguese, Arabic, Russian, Japanese, Traditional Chinese

Power source
100–240 V, 50/60 Hz
Power consumption
485 W—Normal Mode, 100–240 V
470 W—Normal Mode, 220–240 V
350 W—Eco Mode, 100–240 V
335 W—Eco Mode, 220–240 V
2.0 W or less—Network Standby
0.5 W or less—Standby
4.7–1.8 Amps—Current
Sound power level

Normal Mode
41 dB—maximum
37 dB—standard

Eco Mode
39 dB—maximum
35 dB—standard

Environmental standards
EU REACH
EU Battery Directive (2006/66/EC)
Packaging and Packaging Waste Directive (94/62/EC) (Europe)
EU WEEE
ErP (Lot6) (Europe)
Safety standards
CE Marking (Europe)
TUV (Europe)
RPC (Taiwan)
DoC (Taiwan)
Electromagnetic Compatibility (EMC) standards
EMC Directive (Europe)
Australia EMC (C-Tick/RCM)
NZ EMC (C-Tick/RCM)
EMF EN62311 (CE) (Europe)
Operating environment
Temperature
0–40ºC—0–1,499 metres elevation
0–30ºC—1,500–3,000 metres in High Altitude Mode

Humidity
10–90%
Other environmental features
Eco Mode
Projection Calculator

Use this convenient tool to estimate the throw distance for selected Ricoh projectors. It is not intended to provide exact measurements.

Please click the link to visit the Projection Calculator.
