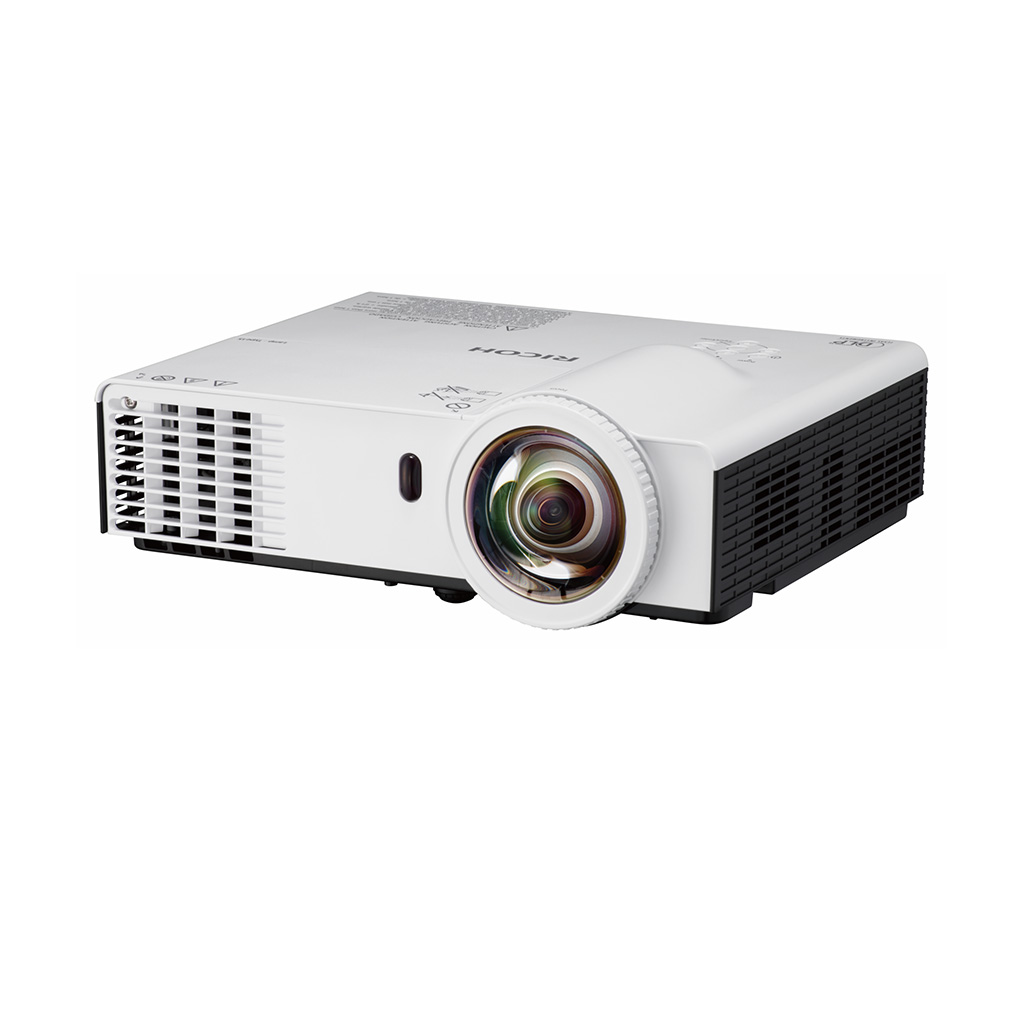

PJ X4340 3,000-lumen short throw projector

  • 1,024 x 768 pixels (XGA)
  • 10,000-hour lamp life (ImageCare)
  • 40–200-inch projection size
  • 8 W speaker


Specifications

Projector type
Short throw
What's included

CD-ROM
Includes instruction manual in English and Chinese

Quick start guide
Yes

Signal cable
RGB cable

Power cord
1.8 metres, 220 V

Conversion adapter
No

Carrier bag
No

Lens cap
Yes

Remote control
Yes

Battery for remote control
CR2025 x 1

Physical dimensions (WxDxH)—mainframe
288 x 220 x 86 mm
Weight—mainframe
2.8 kg or less
Projection system
DLP
Contrast
2,000:1—native
10,000:1—High Contrast Mode (with ImageCare)
Aspect ratio
4:3
Brightness
3,000 lumens
Resolution
1,024 x 768 (XGA)
Lamp type
High-pressure mercury lamp
Lamp wattage
240 W
Lamp life
3,500 hours—Standard Mode
5,000 hours—Eco Mode (Eco1 190 W, Eco2 160 W)
10,000 hours—Auto ImageCare Mode
Lens focal length
f:7.26 mm
Lens aperture
F:2.8
Focus method
Manual
Colour reproduction
1,073,000,000 colours
Projection size
40–200 inches
Projection distance
0.51–2.54 m
Projection ratio
0.617:1/80 inches at 1.0 m
Keystone correction
Supported—manual, vertical
Projector modes
Standard, Rear, Ceiling, Rear ceiling
Input signals

Analogue RGB signal (real)
XGA (1,024 x 768), SVGA (800 x 600), VGA (640 x 480)

Analogue RGB signal (vertical)
UXGA (1,600 x 1,200), SXGA (1,280 x 1,024), WXGA (1,280 x 800)

Input signal
NTSC-M, PAL, SECAM, NTSC-4.43, PAL-M, PAL-N, NTSC-J, PAL-60

Analogue RGB frequency
15k–91.1 kHz—horizontal
24–85 Hz—vertical

3D support
Yes
Speaker
8 W
Other supported features
Automatic brightness control (Auto ImageCare), Closed captioning, USB firmware updates, Front exhaust fan
Interfaces - standard

Computer 1 input terminal
Mini D-SUB 15-pin x 1

Computer 1 monitor output terminal
Mini D-SUB 15-pin x 1

Computer 2 input terminal
Mini D-SUB 15-pin x 1

Video terminal
RCA 1-pin x 1

PC control and service
D-SUB 9-pin x 1 (RS-232C)

Audio 1 and Audio 2 input terminals
3.5 mm mini jack x 2

Audio output terminal
3.5 mm mini jack x 1

HDMI terminal
HDMI x 1

Service terminal
USB Type Mini B x 1 for firmware upgrades

Supported languages

Menu languages
English, German, French, Italian, Spanish, Polish, Swedish, Thai, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Norwegian, Czech, Hungarian, Dutch, Kazakh, Hindi

Instruction manual
English and Chinese

Power source
100–240 V, 50/60 Hz
Power consumption
306 W—maximum
295 W—Standard Mode
240 W—Eco Mode 1 and 2
0.5 W or less—Standby
Sound power level
Operating environment of 23ºC
38 dB or less—Standard Mode
32 dB or less—Eco Mode 1
29 dB or less—Eco Mode 2
Environmental standards
Restriction of Hazardous Substances (RoHS)
REACH regulations
EuP (Lot6)
ErP (Lot19)
Directive 2006/66/EC (batteries and accumulators)
Directive 2005/20/EC (packaging and waste)
Waste of Electrical and Electronic Equipment (WEEE)
Taiwan Battery Regulation
Green labels
Taiwan Green Mark
Safety standards
EN60950-1(TUV)
IEC60950-1 (CB attestation)
IEC60950-1 (PSB)
BIS (Bureau of Indian Standards)
Electromagnetic Compatibility (EMC) standards
Electromagnetic Interference (EMI) standards
EN55022
EN55024 (CE Marking)
EN61000-3-2
EN61000-3-3
AS/NZS CISPR 22 RCM (Regulatory Compliance Mark)
Hong Kong EMC (Electromagnetic Compatibility)
Other environmental features
Eco Mode
