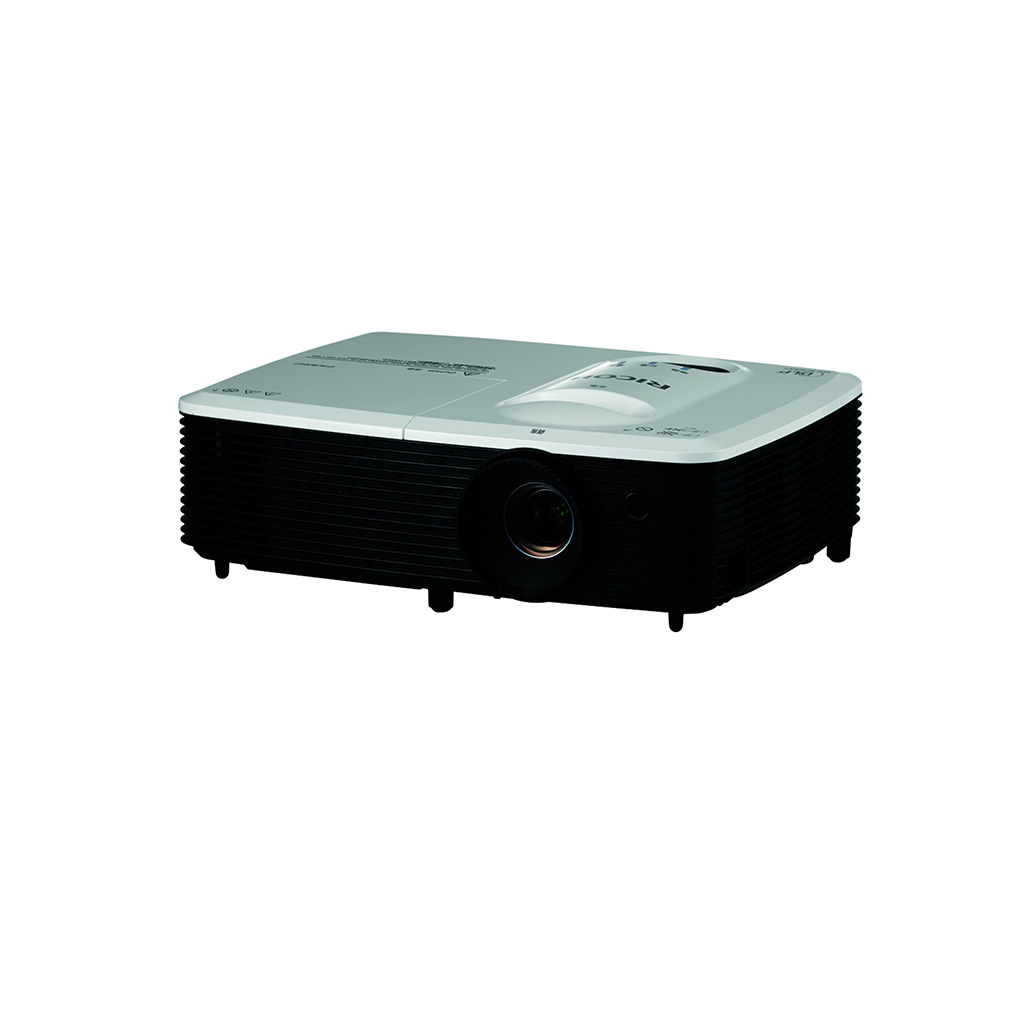

PJ WX2440 3,100-lumen entry-level projector

  • 1,280 x 800 pixels (WXGA)
  • 6,000-hour lamp life (Eco)
  • 30–300-inch projection size
  • HDMI/MHL support
Related Links
Look at the fine detail

The higher the lumens, the clearer the picture. Compelling visuals are delivered in stunning splendour.

Press ‘play’ and deliver your presentation with quick and easy projection

Plug it in and start presenting to clients, students or colleagues. The PJ WX2440 offers multiple ways to connect for seamless delivery.

  1. Brilliant display
    Bright and high contrast display of 3,100 lumens
  2. Choose your distance
    Place from 1 to 11.1 metres from the screen
  3. Ports offer choice
    Ports include HDMI interface, external monitor as well as external speakers
  4. Long life
    Eco Mode reduces energy consumption and extends lamp life

Flexible, lightweight design

The PJ WX2440 comes in compact, travel‑friendly size, weighing less than 3 kg. Deliver stunning visuals via the HDMI interface, with the option to display in 3D. Present from 1 to 10 metres from your projection surface. A long lamp life of 6,000 hours offers cost effectiveness for the long run. Choose your input device for easy connection – just plug in and present.

Download PDF brochure

Specifications

Projector type
Entry-level
What's included
Cables
RGB cable
Power cable

Lens cap
Included

Conversion adapter
Not available

Carrier bag
Not available

Remote mouse receiver
Not available

Remote control
Standard

Battery for remote control
AAA size included

CD-ROM content
User Manual (PDF)
Projector management software
Physical dimensions (WxDxH)—mainframe
298 x 237 x 101 mm
Weight—mainframe
2.6 kg or less
Projection system
DLP
Contrast
2,000:1—Native Mode
10,000:1—High Contrast Mode
Aspect ratio
16:10
Brightness
3,100 lumens
Resolution
1,280 x 800 pixels (WXGA)
Light source life
5,000h/6,000h (Eco)
Lamp type
High-pressure mercury lamp
Lamp wattage
190 W
Lens type
Built-in
Lens focal length
f:21.8–24 mm
Lens aperture
F:2.5–2.67
Zoom type
Manual
Zoom ratio
1.1x
Uniformity
75%—standard, 65%—minimum
Projection size
30–300 inches
Projection distance
1.01–11.11 m
Projection ratio
1.56—1.72:1
Tilt angle
8°—mechanical
Keystone correction
Manual—vertical ±40°
Input signals
NTSC, PAL, SECAM
3D support
DLP Link, Blu-ray 3D
Speaker
2 W, mono
Other supported features
Natural Colour Enhancer (NCE), AV mute (blank), freeze, resize (magnify), Wall Colour Mode, firmware update via 9-pin RS-232C port, inlet lamp mesh, thermal switch
Interfaces - standard

Computer IN
Mini D-SUB 15 pin x 1

Composite video terminal
Yes

S-video terminal
Not available

USB terminal
USB Type A (Firmware update)

Video terminal
RCA 1-pin x 1

Audio input terminal
Mini jack 3.5 mm x 1

Audio output terminal
Mini jack 3.5 mm x 1

Service terminal
RS-232C 9-pin x 1

Digital terminal
HDMI x 1
HDMI/MHL x 1

Network capable
No
Kensington lock
Yes
Password protection of device
Yes
Supported languages
Menu languages
Japanese, English, German, French, Italian, Spanish, Portuguese, Simplified Chinese, Traditional Chinese, Swedish, Polish, Russian, Turkish, Dutch, Danish, Norwegian, Arabic, Indonesian, Thai

User manual languages
English, German, French, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Swedish, Polish, Russian, Turkish, Dutch, Danish, Norwegian, Arabic, Indonesian, Thai

Quick Start Guide languages
English, German, French, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Arabic
Power source
100–240 V, 50/60 Hz
Power consumption
255 W—Full Mode
210 W—Eco Mode
0.5 W—Standby Mode
Sound power level
34 dB—Standard
31 dB—Eco Mode
Safety standards
IEC60950-1 (CB attestation)
TUV Bauart
BIS (India)
RPC (Taiwan)
Electromagnetic Compatibility (EMC) standards
EN55024 (CE Mark)
AS/NZS CISPR22 (RCM)
EN-55024:2010
EMC:CISPR22
Operating environment
Operating environment
5–40ºC temperature
80% humidity

Storage environment
-20–60ºC temperature
80% humidity
Other environmental features
Eco Mode
Projection Calculator

Use this convenient tool to estimate the throw distance for selected Ricoh projectors. It is not intended to provide exact measurements.

Please click the link to visit the Projection Calculator.
