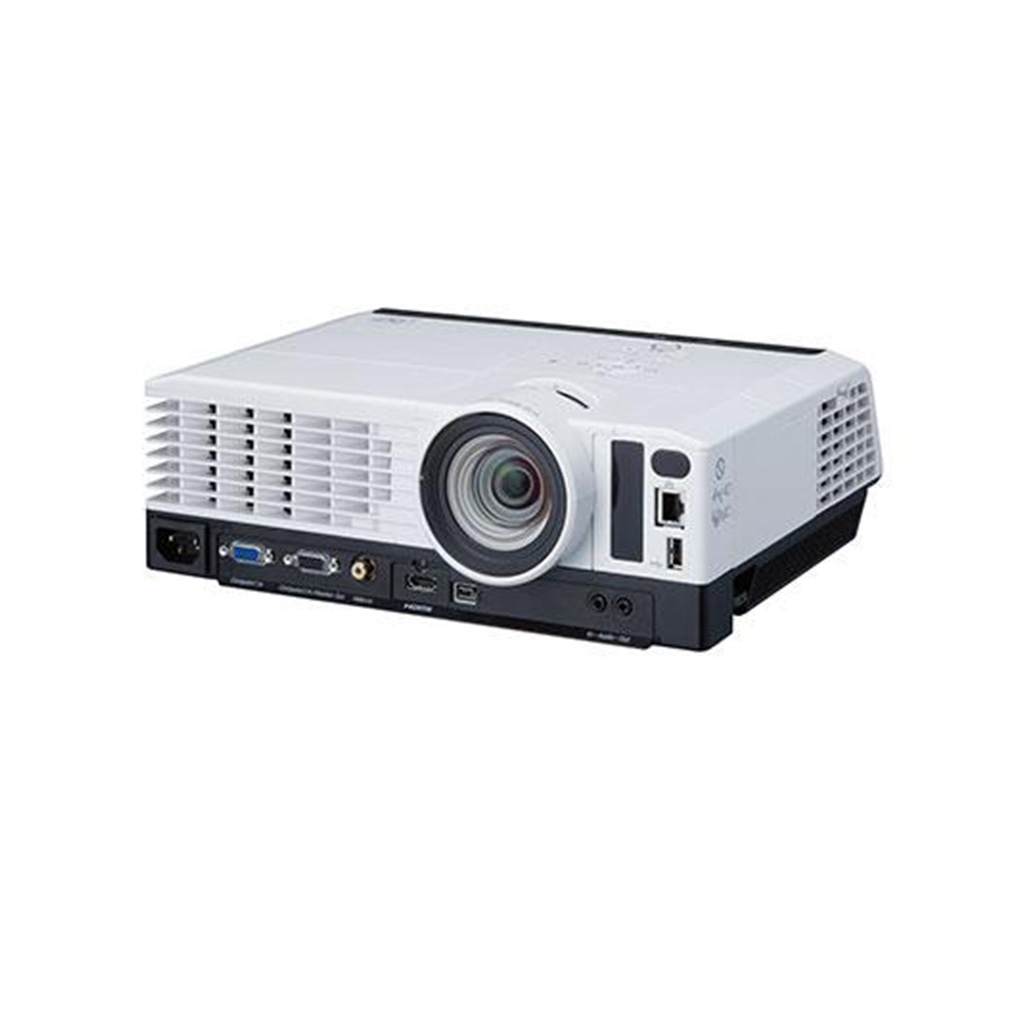

PJ WX3351N

(Discontinued, contact local Product Manager for availability)

  • 3,600-lumen brightness
  • 1,280 x 800 pixels (WXGA)
  • 5,000-hour lamp life (Eco)
  • Network connectivity


Specifications

Projector type
Desk-edge
What's included
CD-ROM
Includes instruction manual in English, JPEG conversion software, network utility, and projector management utility

Signal cable
RGB cable—3 metres

Power cord
3 metres

Conversion adapter
Yes

Carrier bag
Yes

Remote control
Yes

Battery for remote control
AAA battery x 2
Physical dimensions (W x D x H)—mainframe
297 x 235 x 100 mm
Weight—mainframe
3.1 kg
Projection system
DLP
Contrast
13,000:1
Aspect ratio
16:10
Brightness
3,600 lumens
Resolution
1,280 x 800 (WXGA)
Lamp type
High-pressure mercury lamp
Lamp wattage
250 W
Lamp life
3,500 hours—Standard Mode
5,000 hours—Eco Mode
Lens focal length
f:13—19.6 mm
Lens aperture
F:2.56–3.35
Zoom type
Manual
Zoom ratio
1.5x
Focus method
Automatic
Colour reproduction
1,073,000,000 colours
Projection size
40–400 inches
Projection distance
0.77–12.23 m
Projection ratio
0.89–1.40
Keystone correction
Automatic—vertical
Manual—vertical, horizontal, four corners
Projector modes
Standard, Rear, Ceiling, Rear ceiling, 360-degree free tilt
Input signals
RGB compatible signals (analogue, digital)
WXGA (1,280 x 800), XGA (1,024 x 768), SVGA (800 x 600), VGA (640 x 480)—real display
UXGA (1,600 x 1,200), SXGA (1,280 x 1,024)—compressed representation

Input signals (mono)
NTSC, PAL, SECAM, PAL-M, PAL-60, NTSC 4.43, 50 Hz, 60 Hz, PAL-N

Analogue RGB compatible scanning frequency
15–100 kHz—horizontal
23–85 Hz—vertical
3D support
Yes
Control system
AMX, Crestron, PJLink
Speaker
Internal, 10 W, mono
Other supported features
AV mute, Freeze, Resize (magnify), Wall colour correction, Adjuster (front x 2, rear x 1), Multi screen (1 PC to 4 projectors), Automatic brightness control, Closed captioning, Color Universal Design, Presentation timer, Interactive ready (Point blank), Projector management, Miracast, Digital camera connectivity, Simultaneous wired and wireless connectivity, USB firmware updates, Web Image Monitor connectivity, User logo, DLNA, Front exhaust fan, Digital zoom—80 to 100% reduction, High altitude mode—up to 2,500 m
Interfaces - standard

Computer 1 input terminal
Mini D-SUB 15-pin x 1

Computer 2 monitor input/output terminal
Mini D-SUB 15-pin x 1

Video terminal
RCA 1-pin x 1

Audio input terminal
Mini jack x 1

Audio output terminal
Mini jack x 1

PC control terminal
USB Type Mini B x 1

HDMI terminal
HDMI x 1

USB terminal
USB Type A x 1

LAN
RJ-45 x 1 (10Base-T/100Base-TX/1000Base-T compliant)

Wireless LAN
IEEE 802.11a/b/g/n

Communication modes
Ad-hoc, infrastructure, Miracast

Miracast supported devices
Nexus 5 (Android 4.4), Nexus 7 (2013, Android 4.3), Nexus 10 (Android 4.4), Surface 2 (Windows RT 8.1), Surface Pro 3 (Windows 8.1 Pro)

Note: Based on WiFi Certified Miracast standard, but connectivity with all Miracast compatible devices is not guaranteed.

Network authentication
WPA/WPA2-PSK, WPA2-PSK, WPA/WPA2-EAP, WPA2-EAP, open system

Network encryption
WEP, TKIP, CCMP (AES), no encryption

Present direct from USB device (PC-free presentation)
Slide show—still image, animation
Thumbnails—supported
Compatible format for USB memory—JPEG, MPEG2, MPEG4
File extension for USB memory—.jpg, .jpeg, .mpeg, .mpg, .m2ts, .m2t, .mp4, .mov

Digital camera connection support
Pentax
645D, K-50, K-3, K-01, K-5 II, K-5 II S, Q7, Q10, WG-3, WG-3 GPS, WG-4, WG-4 GPS, WG-20, WG-20 GPS, MX-1

Ricoh
G700, GXR GR LENS A12 50mm, GXR GR LENS A12 28mm

Kensington lock
Yes
Password protection of device
Yes
Other security features

Key lock of device, Security bar

Open SSL acknowledgment
This product includes software developed by the OpenSSL Project to use in the OpenSSL Toolkit (http://www.openssl.org/)
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)
This product includes software written by Tim Hudson (tjh@cryptsoft.com)

Windows
Network utility software
Windows Vista SP2 or greater—Home Basic, Home Premium, Business, and Ultimate editions
Windows 7 SP 1—Home Premium, Professional, Enterprise, and Ultimate editions
Windows 8 desktop mode—Pro and Enterprise editions
Windows 8.1 desktop mode—Pro and Enterprise editions

JPEG conversion software
Windows Vista SP2 or greater—Home Basic, Home Premium, Business, and Ultimate editions
Windows 7 SP1—Home Premium, Professional, Enterprise, and Ultimate editions
Windows 8—Pro and Enterprise editions
Windows 8.1—Pro and Enterprise editions

Projector management software
Windows Vista SP2 or later—Home Basic, Home Premium, Business, and Ultimate editions
Windows 7 SP1—Home Premium, Professional, Enterprise, and Ultimate editions
Windows Server 2008 SP2
Windows Server 2008 R2 SP1—standard edition
Windows 8—Pro and Enterprise editions
Windows 8.1—Pro and Enterprise editions

Interactive kit software
Windows 7 SP1—Home Premium, Professional, Enterprise, and Ultimate editions
Windows 8 desktop mode—Pro and Enterprise editions
Windows 8.1 desktop mode—Pro and Enterprise editions

Web image monitor
Internet Explorer 8 and above supported

Note: Not compatible with Windows modern UI and Windows RT.
Macintosh
Network utility software—OS X 10.7–10.10, Web Image Monitor—Safari 7
Supported languages
Menu languages
Japanese, English, French, German, Italian, Spanish, Portuguese, Russian, Swedish, Turkish, Polish, Norwegian, Czech, Greek, Hungarian, Romanian, Danish, Dutch, Finnish, Thai, Arabic, Traditional Chinese, Indonesian
Standard
PC free presentation
Network utility software
JPEG conversion software
Projector management utility
Optional
Interactive kit software
Power source
100–240 V, 50/60 Hz
Power consumption
316 W—Standard mode
334 W—Maximum power consumption
0.3 W—Standby mode (network off)
1.4 W or less—Standby mode (wired LAN on)
1.8 W or less—Standby mode (wireless LAN on)
Sound power level
38 dB or less—Standard mode
32 dB or less—Eco mode
Environmental standards
Restriction of Hazardous Substances (RoHS)
REACH regulations
ErP (Lot 6, 26)
WEEE
Safety standards
EN60950-1 (CE Marking, TUV Mark)
IEC60950-1 (CB attestation)
THA-SAFETY-0001 (power supply)
NZL-SAFETY-0002 (power supply and power cord)
AUS-SAFETY-0003 (power supply and power cord)
Electromagnetic Compatibility (EMC) standards
EN55022
EN61000-3-2
EN61000-3-3
EN55024 (CE Marking)
EMC (RCM Mark)
HKG (EMC)
Wireless LAN standards
EN300 328 (CE)
EN301 489-1, EN301 489-17 (CE)
NCC
Wireless RCM mark
ESER
SIRIM
HKG
WPC
NTC
DGPT
Operating environment
Conditions of environment
Temperature 5–35ºC
Relative humidity 30–70%

Storage conditions
Temperature from -10 to 50ºC
Humidity from 15 to 80% relative humidity
Maximum stack 12 cartons

Transportation conditions
Temperature from -10 to 50ºC
Humidity from 15 to 80% relative humidity
Other environmental features
Eco Mode, Carbon meter, Timer On/Off
