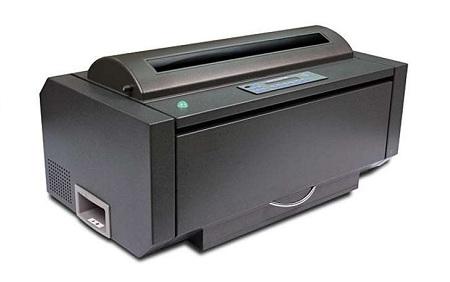

Compuprint 4247-Z03

Reliablevery high-speed printing for demanding business environments

  • Continuous forms: 3" to 17" (76 mm to 432 mm) width, 3" to 24" (76 mm to 610 mm) length
  • 20.000 hours at 25% D.C.
  • Centronics Parallel, Serial (RS-232C), USB 2.0, Ethernet 10/100 BaseT
  • Support for two continuous forms paths
    Dual front tractors
    Paper parking, switching and linking
    Automatic forms loading and thickness adjustment

Reliablevery high-speed printing for demanding business environments

The model is the top of the product's line, it prints up to 1.100 cps, and the 18 pin print-head with a life of 700 millions characters provides high reliability. With a strong and durable metal cover, the Compuprint 4247-Z03 is built to deliver outstanding performance in the most demanding and rigorous environments.

Optional dual front paper and heavy-duty 6-pin tractors with motion sensors provide easy forms loading and reliable paper movement to support printing on a wide range of multi-form printing. Also for Compuprint 4247-Z03 are available different interface configurations: Parallel/Serial/USB or Parallel/Ethernet and Parallel/Ethernet IPDS.

Download Brochure



Specifications

Bar Codes
UPC-A, UPC-E, UPC-2, UPC-5, EANJ-8, EANJ-13, Code 3 of 9, Code 128, Interleaved 2 of 5, Industrial 2 of 5, Codabar, MSI and Matrix 2 of 5
Consumables (now used in Yields field)
25 million characters black inked ribbon
Emulations
Standard: Epson FX, IBM Proprinter 4202 III XL and IBM 2381 Personal Printer and native 4247 mode Optional Ethernet IPDS: IBM 4224, IBM 4230 and native 4247 mode
Environmental conditions
Relative Humidity: 40% to 60% (non condensing), RH Temperature: 50° to 104°F (100 to 40°C) Operating
Relative Humidity: 5% to 95% (non condensing), RH Temperature: -31°F to 149°F (-350 to 65°C) Storage
Acoustics Printing: 53.9 to 59.7 dBA depending on configuration
Heat Output
147 W typical (500 BTU/hr), 23 W Idle (75 BTU/hr)
Input Buffer
Up to 128Kb
Interfaces
Centronics Parallel, Serial (RS-232C), USB 2.0, Ethernet 10/100 BaseT
Max Print Speed
Fast Draft mode 1100 cps
Data Processing mode 800 cps DP text mode 480 cps
NLQ mode 240 cps
Paper Sizes
Continuous forms: 3" to 17" (76 mm to 432 mm) width, 3" to 24" (76 mm to 610 mm) length
Paper handling
Support for two continuous forms paths
Dual front tractors
Paper parking, switching and linking
Automatic forms loading and thickness adjustment
Physical characteristics
WxDxH: 28.4" x 15.7" x 13.8" (721 mm x 399 mm x 351 mm)
72.6 lb./32.9 kg (weight)
Power Consumption
Maximum, 240 Watts, Typical 160 Watts, Power Saver Mode 23.5 Watts
Power Frequency
50/60 Hz
Power Voltage
90 to 244 Vac
Print options
13.6"/345.44 mm maximum print line
Vertical spacing:
6 or 8 lpi selectable from operator panel for text
3, 4, 6, 8 or 9 Ipi selectable under program control for text
1/144" increments under program control available for graphics
Horizontal spacing:
10, 12, 15, 16.7, 17.1 and 20 cpi, 10 cpi in Fast draft mode
Proportional spacing is available in DP text and NLQ mode
Rated Printhead Life
800 million draft characters
Reliability MTBF
20.000 hours at 25% D.C.
Throughput
860 pages per hour (ECMA 132)
Workload
75.000 pages per month
