Ricoh Image

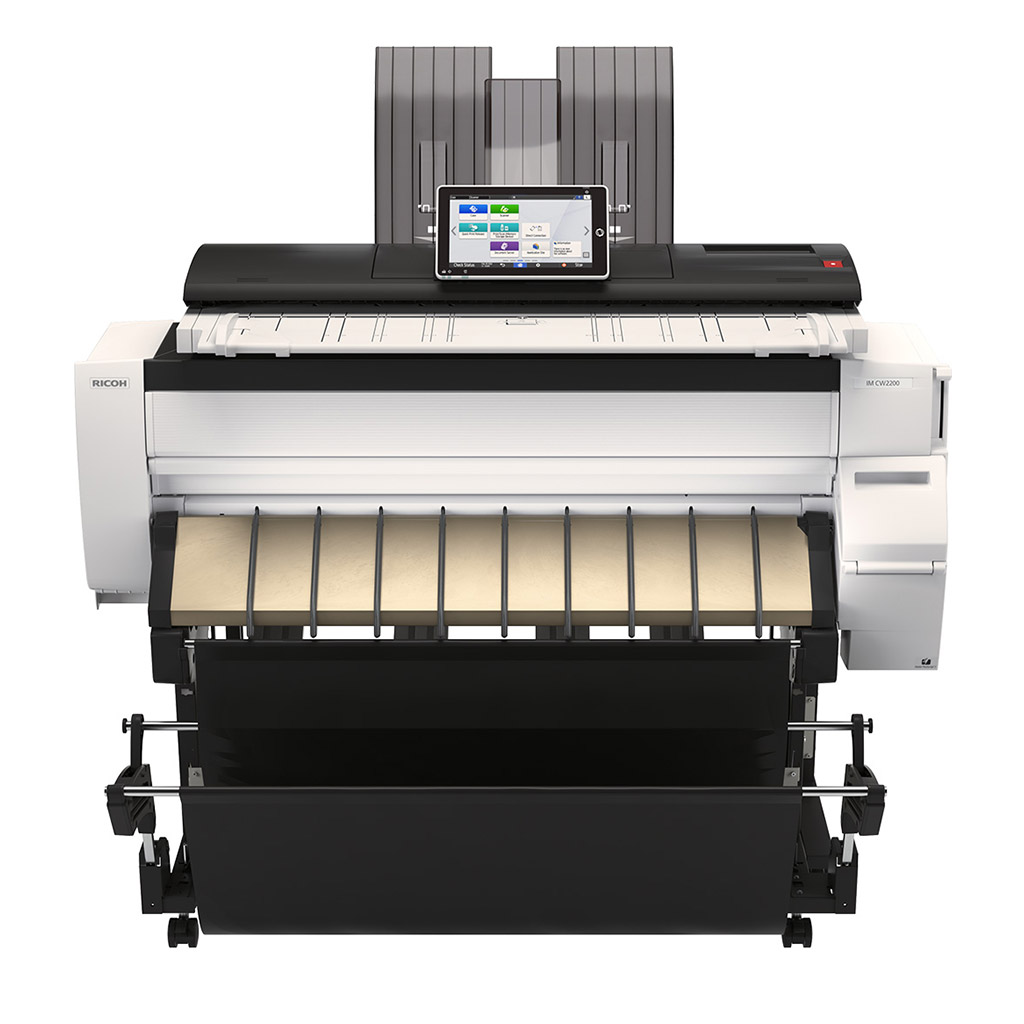

IM CW2200 Colour wide format multifunction printer

  • Print, copy, and scan
  • 3.8 cpm—A1 black and white
  • 10-sheet original stacker
  • 33 m max print length

Exceptional output

Produce impressive CAD drawings, from precise line drafts to boldly coloured 3D renders, with the highest accuracy and finest details.

Secure hub

More than just a printing and scanning solution, the IM CW2200 acts as a secure document hub for technical files to share jobs easily and help enhance productivity.

Quick and effortless

Faster scanning speeds as well as new features such as automatic paper roll setting, 10-sheet original stacker, and max 33 m print length make document production a breeze.

  1. Fast and convenient
    New automatic paper roll setting prints documents up to 33 m long and eliminates the need to manually feed the paper.
  2. Integrate seamlessly in mixed fleet environments
    Latest generation Smart Operation Panel offers an easy to navigate and intuitive interface, which is consistent with Ricoh's state-of-the-art A3 office devices, so no user training is required.
  3. Professional and durable prints
    Ricoh’s unique waterproof GEL-Jet™ technology with inks that are smudge-free and UV-resistant ensure the consistent production of high quality, durable prints.
  4. Fit in anywhere
    The small footprint makes the IM CW2200 flexible and ideal for a wide range of environments where space is an issue.

Download PDF brochure


Copy, print, scan
Printer controller - standard
320 GB
Document server
Intel Atom Processor Apollo Lake-I 1.6 GHz
Memory - standard
4 GB
Operation panel
10.1" Smart Operation Panel (G2.5)
Physical dimensions (WxDxH)—mainframe
1,384 x 675 x 1,220 mm
Physical dimensions (WxDxH)—other
1,108 x 432 x 398 mm—Roll Unit RU6570
120 kg
14.5 kg—Roll Unit RU6570
Average monthly volume
120 m
Average monthly statement
Reliability targets are measured using A1 LEF paper width (841 mm) with 6% black and white/20% colour (5% x 4 colours) coverage, 40% colour ratio, and one page per job.
Machine life
72,000 m or 5 years, whichever comes first
PM cycle
10,000 m
3,125 m
Supply yields
Black and white printing
529 copies or 314 m per 200 ml black cartridge
708 copies or 421 m per 100 ml cyan cartridge
699 copies or 415 m per 100 ml magenta cartridge
700 copies or 416 m per 100 ml yellow cartridge

Colour printing
352 copies or 209 m per 200 ml black cartridge
472 copies or 280 m per 100 ml cyan cartridge
466 copies or 277 m per 100 ml magenta and yellow cartridge

Note: All toner yields are measured using A1 LEF paper with 6% black and white/20% colour (5% x 4 colours) coverage, and a 40% colour ratio, 60% black and white ratio.

Waste tank capacity
425 ml or 5 years, whichever comes first
120 m
40% colour ratio

Waste tank use conditions
23 degrees Celcius and 50% humidity
Standard input capacity (sheets)

Roll feed
One roll each—297–914 mm wide x unlimited length, or max diameter 176 mm

1 sheet—914.4 x 2,000 mm

Standard output capacity (sheets)

10 sheets—original stacker (rear upper tray)
1 sheet—basket

Note: Basket output can't be stacked because the curvature factor is small.

Paper input configuration - standard
1-sheet bypass tray, 1-roll feeder
Paper input configuration - optional
1-roll feeder, roll holder
Paper output configuration - standard
10-sheet original stacker—rear upper tray, 1-sheet output basket
Supported media

Plain paper, recycled paper, inkjet plain paper, tracing paper, matte film, coated paper, coated paper—CAD, special paper

Maximum paper size
914.4 mm x 33,000 mm
Media weight (g/m2)
Interfaces - standard

1000 Base-T/100 Base-TX/10 Base -T (Ethernet)
USB 2.0

Smart Operation Panel
IEEE 802.11 b/g/n (Wireless LAN)
Bluetooth 4.22
SD Card Slot—SDHC memory card
USB Host Type A—USB Flash memory
USB Host Type A—1 port for USB keyboard (optional)2
USB Host Type mini B—for NFC card reader (optional)2
NFC Tag2

1—Limited printing for a peer-to-peer mobile device via RICOH Smart Device Connector
2—Cannot be used for printing
Interfaces - optional
IEEE 802.11 a/g/n (Wireless LAN)
Network protocols - standard
TCP/IP (IPv4, IPv6)
MIB support
MIB-II (RFC1213)
Host Resources MIB (RFC1514)
Printer MIB (RFC1759)

Ricoh original MIB
Copy speed

A1 LEF—black and white
2.0 cpm—Standard Mode
3.8 cpm—High Speed Mode

A1 LEF—colour
1.2 cpm—Standard Mode
2.1 cpm—High Speed Mode

A0 SEF—black and white
1.1 cpm—Standard Mode
1.9 cpm—High Speed Mode

A0 SEF—colour
0.6 cpm—Standard Mode
1.1 cpm—High Speed Mode

First copy time

A1 LEF—black and white
41 seconds—Standard Mode
29 seconds—High Speed Mode

A1 LEF—colour
84 seconds—Standard Mode
53 seconds—High Speed Mode

A0 SEF—black and white
71 seconds—Standard Mode
51 seconds—High Speed Mode

A0 SEF—colour
155 seconds—Standard Mode
81 seconds—High Speed Mode

Copy resolution
600 dpi
Original paper width
210, 257, 297, 364, 420, 440, 490, 515, 594, 620, 625, 660, 680, 707, 728, 800, 841, 880, 914 mm
Roll paper width
297, 364, 420, 440, 490, 515, 594, 620, 625, 660, 680, 707, 728, 800, 841, 880, 914 mm
Original feed
Maximum size
914 x 2,774 mm—colour, without optional File Format Converter
914 x 15,000 mm—with optional File Format Converter
Minimum size
210 x 210 mm
Set position
Paper cut method
Preset size, synchronised cut, variable cut
Image shift
Front, rear, left, right—0 to ±200 mm in 1 mm steps
Emergency stop
Quantity selection
Copy reservations
8 reservations
Job programs
Up to 25 program modes
Zoom range
25%–400% in 0.1% steps
Enlargement ratios
141.4%, 200%, 282.8%, 400%
Reduction ratios
25%, 35.4%, 50%, 70.7%
Image density adjustment
7 levels, black and white, greyscale, full colour—manual ; black and white, greyscale—Auto density selection
Image density adjustment
Automatic, manual—9 steps
Copy modes
Black and white
Text, Generation, Map, Background Line, Pasted Original, Highlighter
Text/Photo, Photo—printed, glossy, copied

Text, Generation, Map
Text/Photo, Photo—printed, glossy, copied
Colour mode
Full colour, black and white
Automatic paper selection (APS)
1st roll, 2nd roll (optional), bypass tray
Combine copy
2, 4, or 8 into 1 up to A1
Interrupt copy
Not supported
User codes
1,000 user codes, 8 digits in each code
Slip sheet
Electronic sorting
Rotate sort up to A1
Margin/erase adjustment
Margin adjustment
0–200 mm in 1 mm steps

Erase border
2–99 mm in 1 mm steps

Erase inside, outside
0–1,220 mm in 0.1 mm steps
Image adjustment
7 levels—sharpen/soften
9 levels—contrast
9 levels—background density
9 levels—Under Colour Removal (UCR) adjustment
5 levels—colour sensitivity
15 colours—colour program registration
Image creation
Repeat, mirror, positive/negative, double copy—up to A1
Colour creation
Colour conversion, colour erase
8 stamps, 2 sizes—presets
40 stamps can be registered—user presets
5 styles—date stamp
6 styles—page stamp
9 digits supported, zero suppression not supported—Bates stamping
Image rotation
Other copy features
Auto density adjustment, Colour adjustment, Colour balance adjustment, Auto tray switch, Image rotation, Auto start, Job preset, Sample copy, Simplified Display, Login/logout button, Job log data report, NRS option (@Remote), Document server, Unauthorised copy prevention, Partial copy—210–33,000 mm length can be defined as partial, OHP slip sheet—bypass only, Paper type display—standard tray, Image border—3 mm or less all edges (roll paper); 3 mm or less leading edge/18 mm or less training edge/3 mm or less right/left edges (bypass)
Print speed colour
2.1 ppm—A1 LEF
Print speed black and white
3.8 ppm—A1 LEF
Printing process
On demand Piezo inkjet system
Ink type
Pigment-based ink—all four colours
Print resolution

Speed Priority (Drawing) Mode, Speed Priority Mode
600 x 300 dpi

Standard Mode
600 x 600 dpi

Quality Priority Mode with coated paper, film (matte) and special paper
1,200 x 1,200 dpi

Quality Priority Mode with other paper types
600 x 600 dpi

Page description languages (PDLs)
Adobe PostScript 3, PDF Direct, RP-GL/GL2, RTIFF, Media Print JPEG, Media Print TIFF
Printer drivers
Adobe PostScript 3
136 European fonts—Adobe PostScript 3
Print from USB/SD
Supported—JPEG, TIFF, PDF
Other print features
One direction, Unauthorised copy prevention—(Adobe PostScript 3 driver), WSD printer, Colour matching, POP, Colour Universal Design (CUD), Ink Save Mode—save ratio 50%, available with Adobe PostScript 3, Sample print, Encrypted secure print, Hold print, Stored print, Auto job promotion, Bonjour (Rendezvous) support, Barrier-free colour management mode, Scheduled print, Banner page print (Job sheet print), Classification code, Web print tool, Emergency print, Black Over Print, Tray parameter change from Web Image Monitor, Poster print
Scan speed
Black and white
26.5 mm/second—2,400 dpi
53.3 mm/second—1,200 dpi
106.7 mm/second—600 dpi
160 mm/second—150, 200, 300, 400 dpi
8.8 mm/second—2,400 dpi
17.6 mm/second—1,200 dpi
35.3 mm/second—600 dpi
53.3 mm/second—150, 200, 300, 400 dpi
Scan methods
Scan to USB/SD, Scan to email, Scan to folders (FTP, SMB)
Colour scanning
Scan mode
Scan modes
Black and white
Text/Line Art—default, Text, Text/Photo, Photo, Greyscale

Text/Photo, Photo
Scanning process
CIS colour scanner
Scan resolution
150, 200 (default), 300, 400, 600 dpi—Scan to email/folder
150–2,400 dpi—TWAIN

Note: 2,400 dpi is only supported using A4 paper.
Automatic size detection
Auto detect, preset paper size, custom size
Scan area
210 x 210 mm—minimum

Black and white—maximum
914.4 x 15,000 mm

Note: Optional file format converter is required when the paper length is greater than 2,774 mm.

914.4 x 2,774 mm—600 dpi
914.4 x 4,161 mm—400 dpi
914.4 x 5,548 mm—300 dpi
914.4 x 8,323 mm—200 dpi
914.4 x 11,097 mm—150 dpi

Note: PDF1.4 is supported up to 5,080 mm.
Scanner compression methods
Black and white
MH, MR, MMR—default, JBIG2

Note: JBIG2 supported using PDF file format.

5 levels—JPEG
Image density adjustment
7 levels, black and white, greyscale, full colour—manual ; black and white, greyscale—Auto density selection
Scan to email
Scan to email—other features

Email addresses stored in HDD
Maximum email addresses—2,000
Maximum registered group addresses—500

Maximum email addresses per send
500—from HDD
100—direct input
100—via LDAP

Scan to email size
100 MB—with restrictions
700 MB—without restrictions

Scan to folder—other features

Maximum group addresses

Maximum client folders per send

Maximum file size
2,000 MB

TWAIN scanning—other features

Image adjustment
Brightness, Contrast, and Threshold (-100 to 100), Black and White (Text, Photo), Greyscale, 8 Colours, 8 Colours Halftone, 1677 Ten Thousand Colours, Gamma Adjustment (Normal, Soft, Sharp, Linear), Soft, Sharp, Dither (11 levels), Error Diffusion, Positive/Negative, Mirror, Dot Erase

Supported operating systems
Windows Server 2008, Windows 7, Windows Server 2008 R2, Windows 8.1, Windows 10, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

TWAIN scanning
Scan mode
Standard, Photo, OCR, Filing
Other scan features
Gradation—1-bit in black and white, 8-bit in greyscale, 8-bit/24-bit in colour, RGB support—24-bit ,256 levels
User authentication—Windows (via Kerberos), LDAP, basic, user code
802.1x wired authentication
Windows 8.1
Windows 10
Windows Server 2012/2012 R2
Windows Server 2016
Windows Server 2019
Citrix support
XenApp 7.15 LTSR
VirtualApps/Desktops 2012 and later
OS X Native 10.14, 10.15, 11—PostScript 3 only
Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise v4, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—v6.1, v7.1, v7.2
@Remote Embedded
Web Image Monitor
RICOH Streamline NX v3
Global Scan NX
Enhanced Locked Print NX v2
Enhanced Locked Print NX FlexRelease Server v2
Card Authentication Package v2
Card Authentication Package Enterprise Server v2
Device Manager NX Lite
Device Manager NX Accounting
Power source
220–240 V, 50/60 Hz, 1.9 A
Power consumption
113 W—maximum power, mainframe
135 W—maximum power, full configuration
89 W—operating, black and white
86.9 W—operating, colour
48.8 W—Ready Mode
45.7 W—Low Power Mode
0.65 W—Energy Saver Mode (Sleep Mode)
Warm-up time
40 seconds or less
Auto Off, Energy Saver, Panel Off, System Reset
Sound power level
33.8 dB—standby, black and white
66.8 dB—copying, black and white
66.3 dB—copying, colour

Full system
66.2 dB—copying, black and white
Sound pressure level
22.5 dB—standby, black and white
58.6 dB—copying, black and white
55.6 dB—copying, colour

Full system
58.2 dB—copying, black and white
Emission levels
0.02 mg/h or less—benzene
0.1 mg/h or less—styrene
Total Volatile Organic Compounds (TVOC)
0.164 mg/h—ready
10.26 mg/h—printing
Identification of plastic components
All plastic components that weigh more than 25 g are identified in accordance with DIN 548490 and ISO 11469 standards.
