IM CW2200

IM CW2200

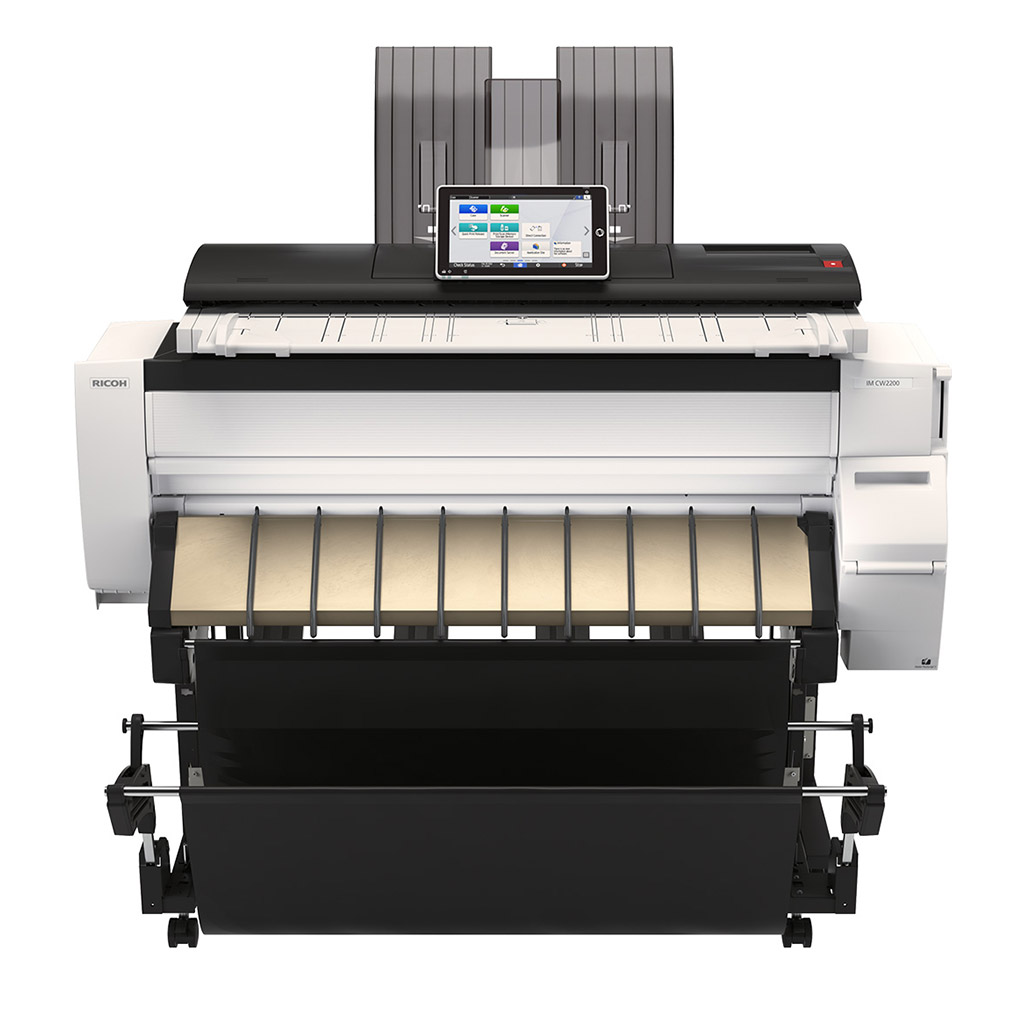

The IM CW2200 is a wide format multifunction printer featuring Ricoh’s innovative pigment-based 4-colour ink system. It provides a maximum A1 copy speed of 3.8 copies per minute (cpm) for black and white, and 2.1 cpm for colour.

The IM CW2200 also offers fast scan speeds of 35.3 mm/s in colour and 106.7 mm/s in black and white, a 10-sheet original stacker, and support for up to 33 m print length.

Equipped with the latest Ricoh GWNX controller and 10.1” Smart Operation Panel G2.5, the IM CW2200 offers enhanced functionality and supports a range of solutions and apps to meet individual workflow requirements.

The IM CW2200 is targeted mainly at small businesses in the Architecture, Engineering, and Construction (AEC), Manufacturing, Government, and Pay For Print (PFP) industries.

Roll Unit RU6570
Increases the roll capacity from standard 1 roll to 2 rolls total.

Number of paper rolls: 1 roll
Roll paper size: 279.4 mm—minimum width, 914 mm—maximum width
Roll paper diameter 176 mm
Dimensions (W x D x H): 1,108 x 432 x 398 mm
Weight: 14.5 kg
Roll Holder Type M23

Attached to both ends of a paper roll to provide additional flange inserts that grip the paper roll and mount it in the paper roll tray.

Dimensions (W x H x D): 1,049 x 160 x 160 mm
Weight: 1.5 kg or less

File Format Converter Type M23
Allows users to save copy and print jobs stored on the document server to a computer.
OCR Unit Type M13
Scans and creates editable text files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.
NFC Card Reader Type M23
Ricoh card reader that supports authentication via Near Field Communication (NFC) technology. It can be used with Ricoh devices that are equipped with the 10.1" Smart Operation Panel that have standard authentication embedded.
IEEE 802.11a/g/n Interface Unit Type M19
Enables WiFi connectivity and wireless printing.

Standard inclusions

  • 10.1" Smart Operation Panel
  • 10-sheet original stacker
  • 320 GB HDD
  • 4 GB RAM
  • Integrated colour Print, Copy and Scan

Current configuration

IM CW2200
1384 mm x675 mm x1220 mm (W x D x H)
120 kg
Selected Options:
    IM CW2200
