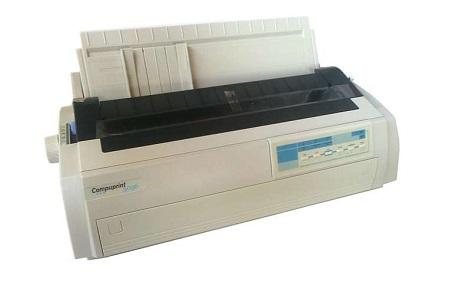

Compuprint 3056/3056N Reliablevery high-speed printing for demanding business environments

  • Windows 95/98/2000/XP/Vista - Unix - Linux
  • Centronics, Parallel IEEE 1284 bidirectional - Serial RS232 - USB (Base models)
    Centronics, Parallel IEEE 1284 bidirectional - USB - Ethernet LAN 10/100 BaseT (N models)
    Input buffer up to 128 Kbytes; Automatic interface switching; Plug-in & Play (Windows environment)
  • 24 pin - serial dot matrix printers

Reliablevery high-speed printing for demanding business environments

The Compuprint 3000 family is designed to be the ideal solution in Office and Industrial, logistics environments. Its robustness and reliability provide unmatched performance and flexibility to support a variety of forms and documents printing. A complete range of products ready for any environment including the LAN thanks to the integrated Ethernet board.

Download Brochure



Specifications

Bar Codes
UPC-A, UPC-E, UPC-2, UPC-5, EANJ-8, EANJ-13, Code 3 of 9, Code 128, Interleaved 2 of 5, Industrial 2 of 5, Codabar, MSI and Matrix 2 of 5
Character set
ASCII, Italic, CP437, CP850, CP860, CP863, CP865, CP858, CP737 (437G), CP857, (P1250, CP864, (P1098, CP1 256
International Character Set: USA, France, Germany, England, Denmark, Sweden, Italy, Spain, Japan, Norway, Denmark 2, Spain 2, Latin America, Korea, Legal
Drivers
Windows 95/98/2000/XP/Vista - Unix - Linux
Interfaces
Centronics, Parallel IEEE 1284 bidirectional - Serial RS232 - USB (Base models)
Centronics, Parallel IEEE 1284 bidirectional - USB - Ethernet LAN 10/100 BaseT (N models)
Input buffer up to 128 Kbytes; Automatic interface switching; Plug-in & Play (Windows environment)
Physical characteristics


Power Consumption
75 W Max. (printing), 15 W (standby)
Drivers
Windows 95/98/2000/XP/Vista - Unix - Linux
SW Tool
Network Interface Manager - Internal web page
Resident font
Microsoft Window XP/Vista/2003/2008/7, Linux
Resident Emulations
Epson ® LQ-ESC/P, OKI, IBM ProPrinter (PPDS)
Printing speed
HSD: 650cps (12cpi), 560cps (10 cpi)
Draft: 520cps (12cpi), 480cps (10 cpi)
NLQ: 288cps (12cpi), 240cps (10 cpi)
LQ: 144cps (12cpi), 120cps (10 cpi)
Printing resolution
360x180 dpi (max)
Printing Technology
24 pin - serial dot matrix printers
Line Length
136 columns @ 10 cpi
