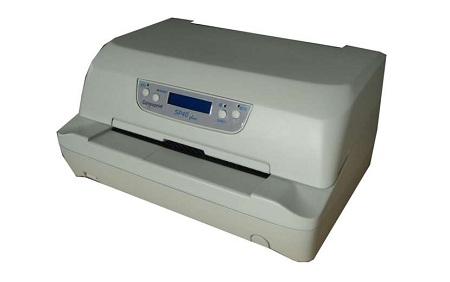

Compuprint SP40plus Series

A New Standard For Front Office And Financial Applications

  • Impact Dot Matrix 24 pin
  • 94 columns @10 cpi, 112 columns @12 cpi, 141 columns @15 cpi
  • LCD display – 2 lines with 16 characters each
  • Windows 2000, XP, Vista (32-64 bits), Windows 7 (32-64 bits)

A New Standard For Front Office And Financial Applications

Compuprint SP40plus our most innovative product on the market yet. It is designed to provide print speed, versatility and advanced solutions for banking, financial services, postal and public administration sectors. By assuring process efficiency and offering a competitive low cost of ownership SP40plus is the ideal choice for delivering high productivity, durability, simplicity and flexibility.

POWERFUL DOCUMENT HANDLING

Compuprint SP40plus handles a wide type of formats and thicknesses: single sheet up to A4 size, cheques, vouchers, multi-copy forms, passbooks, ID cards, tickets. SP40plus superior document handling (auto alignment and AGA) ensures that documents inserted with variable thickness (up to 2,7mm) at different angles in any position, will be printed quickly and efficiently.

LOW COST OF OWNERSHIP

The SP40plus offers the lowest cost of ownership for the users. The ribbon life is more than 10 million characters which means long printing time, and the long life print head of more than 400 million characters (equivalent to more 1 Billion strokes/wire) assures high MTBF reducing number and time of technical interventions.

EASY INTEGRATION AND USE

Compuprint SP40plus has a simple and friendly interface with LCD display that simplifies user operations. It fits into your existing IT environment thanks to standard and financial emulations. SP40 plus standard interfaces are Parallel, Serial and USB 2.0 (Full Speed). Other available options include: LAN, additional Serial, additional USB device, up to 3 USB 2.0 ports (Hub/Host) for easy connection of other devices. SP40plus innovative mechanical design makes it easy for the user to access the paper path to clear documents or clean internal devices.

ENVIRONMENTALLY FRIENDLY PRODUCT

Compuprint is totally aware of the responsibility to our environment and has addressed three important environmental issues: “the reduction of power consumption,” “conformity with regulations to control chemical substances” and “resource conservation (reduction in size and weight)”. SP40plus contributes to the reduction of environmental impact by offering environmentally conscious benefits like the lowest power consumption available (<3W), standard over 10 million character ribbon, more than 400 million characters long life print head and recyclable materials.

Download Brochure



Specifications

Scanner
Front/rear colour scanner, 16 million colours RGB, 256 grey levels, up to 600 dpi, Twain compatible, scan size from ID card to A4.
Scanning speed (front/rear): up to15 inch/sec Mono, up to 7,5 inch/sec Colour
MSRW
Magnetic strip read/write, 4 bit code – Reading speed 13 inch/sec
Characters: ASCII 30-3F, Field dupl., DIN 32774,ANSI, IBM 3604, Burroughs
Horizontal Spacing
MICR reader – Reading speed 27 inch/sec CMC7 and E13B supported
Printing Technology
Impact Dot Matrix 24 pin
Print Speed
580 cps (VHSD), 520 cps (HSD), 400 cps (Draft), 200 cps (NLQ), 133 cps (LQ), BIM: 2400 dps
Line Length
94 columns @10 cpi, 112 columns @12 cpi, 141 columns @15 cpi
Horizontal Spacing
MICR reader – Reading speed 27 inch/sec CMC7 and E13B supported
Paper handling
Single sheet, envelopes, label, fanfold (40 gr/m2 to 200 gr/m2 – 0,065 mm to 2,7 mm)
Passbook (horizontal an vertical)
Single sheet: width 65-244 mm, length 65-470 mm
Copies
1 original + 6 copies
Paper path
Friction feed: rear in top out, front in top out - Tractor feed: rear in top out, front in top out, bottom in top out
Special functions
Automatic Gap Adjustment (AGA), Document Auto Alignment, Bidirectional Logic Seeking
Auto Border Recognition, Optical Mark Reading, Automatic Set-up
SupersededText
Superseded Product
Display
LCD display – 2 lines with 16 characters each
Graphic Resolution
60, 120, 180, 240, 360 horizontal – 72, 90, 180, 216, 360 vertical
Character Set
21 International Code Page, 28 International Character Set, Gost, Mazovia, Farsi
Barcodes
UPC A/E, EAN 8/13, Code 11/39/93/128, ADD-ON 2/5, BCD, MSI, 2/5Interleaved, 2/5 Matrix, 2/5 Industrial, Postnet, Codabar
Resident Font
Draft, Courier, Gothic (Sans Serif), Roman, Prestige, Presentor, Script, OCR-A/B, Boldface, Italic
Resident Emulations
IBM Personal Printer 2390+, IBM Proprinter XL24-XL24AGM, Epson LQ2550/LQ1170/ESC/P IBM 4722, Olivetti PR40plus/PR2/PR2845, IBM 9068, HPR 4915, UNISYS EFP Series
Interface
Standard: Parallel, Serial RS-232 C, USB 2.0 Full Speed (Automatic Interface Switching)
Optional: 2nd Serial, 2nd USB device High Speed, Ethernet 10/100, up to 3 USB Hub ports, USB Host (2.0 Full Speed OHCI)
Input buffer up to 128 Kbytes
Drivers
Windows 2000, XP, Vista (32-64 bits), Windows 7 (32-64 bits)
Reliability
MTBF > 10.000 hours – MTTR 16 minutes
Print Head
24 needles, life > 400 million characters (equivalent to > 1 Billion strokes/wire)
Consumables (now used in Yields field)
Black ribbon, life > 10 million characters
Noise Level
< 54 dB (A)
Power Supply
Universal 100-230 V, 60-50 Hz
Power consumption: 45 W (ISO/IEC 10561 Letter pattern) – Sleep Mode < 3W– Off Mode 0W
Energy Star compliant
Dimensions and weight
396 (W) x 200 (H) x 285 (D) mm – 8 Kg (9,2 Kg packed)
