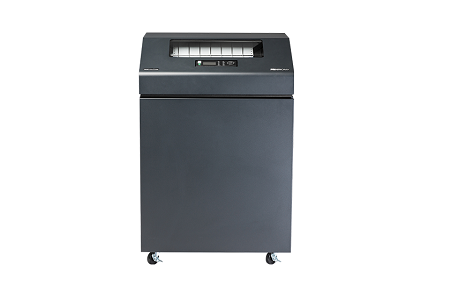

P8000 Cabinet The flagship model in the series, the P8000 Cabinet is your choice when reducing noise within your industrial printing environment is an objective.

  • 13.6″ (345mm)
  • Up to 6 part; up to 4 part for Zero Tear models
  • Continuous, fan folded, edge-perforation
  • EthernetEnvironmental Operating Temperature 50° to 104° F, 10° to 40° C
Related Links
The flagship model in the series, the P8000 Cabinet is your choice when reducing noise within your industrial printing environment is an objective.

The flagship model in the series, the P8000 Cabinet is your choice when reducing noise within your industrial printing environment is an objective.

The P8000/P8000H Cartridge series delivers the most flexible design, adaptable functionality and manageable savings of any line matrix printer. With the Enclosed Cabinet model, you gain multiple options for paper handling including:

  • Optional Front Paper Access, which is ideal for supporting operations in confined spaces
  • Optional Expanded Doors to accommodate larger forms
  • Our quietest printer for environments where noise is a consideration



Print speeds:

  • P8000: 500 to 2,000 lines per minute
  • P8000H: 300 to 800 lines per minute



Flexible Design. Printronix modified its industry-leading line matrix technology to address evolving user requirements.

Sheet metal promotes increased durability and quieter acoustics

Adaptable Functionality. The P8000/P8000H Cartridge series adapts to almost any supply-chain or back-office environment.

  • USB 2.0 and Serial connectivity included as standard features. Parallel and Ethernet available as options.
  • PowerPrint™ delivers improved print clarity and print darkness on multi-part forms by increasing impact energy. PowerPrint is a standard feature on P8000 printers with a 1,000 line-per- minute print speed.



Manageable Savings. The P8000/P8000H Cartridge is a smart purchase.

  • New backward-compatible cartridge ribbon reduces inventory management cost and eliminates ordering and installation confusion
  • Enhanced remote management functionality allows you to manage configuration settings and monitor printer status & ribbon life from anywhere.
  • New energy efficient technology lowers idle power consumption by 55% and boosts operating efficiency



P8000H Cartridge Series

High resolution capabilities that improve user experience with support of Asian fonts

Download Brochure  Download Manual

Specifications

Acoustic Noise

P8205: 50

P8210: 50

P8215: 52

P8220: 55

Barcodes
30 resident symbologies, including Code 39, EAN 8/13, UPC A/E, Intelligent Mail, Postnet, Royal Mail, Interleaved 2 of 5, PDF 417, Data Matrix
Character Pitch
10, 12, 13.3, 15, 16.7, 17.1, 20
Character Sets
99 plus character sets including ECMA Latin 1, DEC Multinational, IBM Code Page 437 and 850, OCR A, OCR B, UTF8 encoded Unicode
Character Styles
Bold, italic, double wide, double high, overstrike, underline, subscript and superscript
Connectivity Interfaces

Standard: USB 2.0 and Serial RS-232

Optional: Ethernet – 10/100 Base T

                 Parallel – IEEE-1284 Centronics

Consumable Ribbons

Standard Life Cartridge Ribbon: 17,000 pages

Extended Life Cartridge Ribbon: 30,000 pages

Page yield based on ISO LSA Page, 8.5″ x 11″ letter-size, approximately 5% coverage

Depth
29″ (736.6 mm)
Dot Size
16.7 mil (.42mm)
Emulations

Standard: LP+ (Printronix P-Series, P-Series XQ, Serial Matrix, IBM ProPrinter III XL, Epson FX-1050)

Optional: ANSI, IPDS, PCL 2, DEC LG, TN5250/TN3270, Graphics emulation PGL and VGL

Fonts
NLQ Serif, NLQ Sans Serif, Data Processing, High Speed, OCR A, OCR B
Graphics Resolution
180 dpi Horizontal, 144 dpi Vertical (max)
Height
40.5″ (1028.7 mm)
Line Spacing
6, 8, 10.3, n/72, n/216
MTBF
10,000 hours at 25% duty cycle and 25% page density
Media Copies
Up to 6 part; up to 4 part for Zero Tear models
Media Length
3” (76mm) to 12” (305mm)
Media Thickness Multipart
0.025” (0.64mm) max
Media Weight Single Ply

15 lb. Bond to 100 lb. Tag (56 to 163 gm/M2)

For Zero Tear models:

 18 lb. Bond to 100 lb. Tag (67.7 to 163 gm/M2) for forms up to 12” (305mm) in width

 20 lb. Bond to 100 lb. Tag (75.2 to 163gm/M2) for forms up to 16” (406mm) in width

Media Width

3″ (76mm) to 17″ (432mm)

For Zero Tear models:

   7.5” (191mm) to 12” (305mm) for up to 4 part carbon and 6 part carbonless

   7.5” (191mm) to 16” (406mm) for up to 3 part carbon and 4 part carbonless

Operating Temperature
EthernetEnvironmental Operating Temperature 50° to 104° F, 10° to 40° C
Paper Type
Continuous, fan folded, edge-perforation
Power Consumption Power Saver Mode
Less than 5 watts
Power Consumption Typical Maximum

P8005 / P8205 280 watts Max 320 watts

P8010 / P8210 300 watts Max 320 watts

P8215 435 watts Max 601 watts

P8220 450 watts Max 601 watts

Power Voltage
AC input range 100-240 VAC, 50/60 HZ
Print Width
13.6″ (345mm)
Printer Drivers
Microsoft Window XP/Vista/2003/2008/7, Linux
Printer Software
Printronix PrintNet Enterprise remote management software, SAP device support
Printer Weight
200 lbs (90.7 Kg)
Shipping Printer Weight
265 lbs (120.2 Kg)
Width
27″ (685.8 mm)
