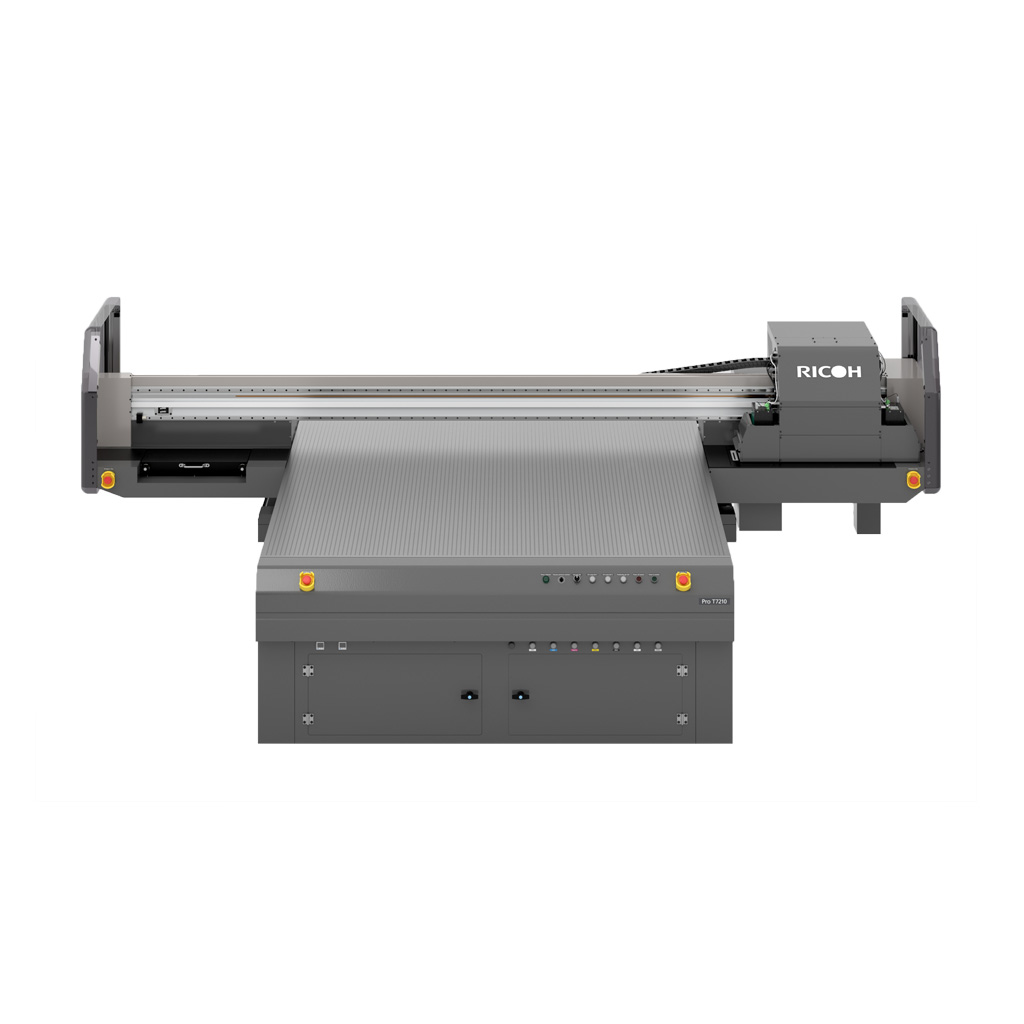

Pro T7210 Industrial inkjet printer

Prints up to 50.1 m2 per hour
Up to 110 mm substrate thickness
2.1 x 3.2 m print area
UV printing technology

Print on almost anything with the new Pro T7210 flat-bed printer

Backed by over 40 years of innovation, Ricoh are the inkjet experts.

Our new Pro T7210 flat-bed printer powers printing on almost any surface or substrate.

The industrial grunt of the Pro T7210 delivers print speeds of up to 102.8 m²/h, three-layered printing and stunning white ink effects.

Unlock more print choice with the inkjet specialists.

Download PDF brochure

Request a demo

Specifications

Functions: Print
Colour: Yes
Device configuration: Console

Physical dimensions (WxDxH)—mainframe: 4,410 x 3,860 x 1,600 mm
Weight—mainframe: 2,150 kg or less
Minimum space requirements: 1,050 mm—front
1,000 mm—left
1,000 mm—right
1,550 mm—rear

Average monthly volume

1,600 square metres per month

Max monthly volume

3,200 square metres per month

Machine life

134,400 square metres or 7 years, whichever comes first

PM cycle

19,200 square metres per month

MCBC

6,799 square metres per month

Maintenance

Pattern 1
Physically check and run adjustment via pattern printing—nozzle check and dot position adjustment

Pattern 2
Individual maintenance—head and air purge cleaning

Pattern 3
Cleaning sequence setting during power-off—white ink only
Setting white ink circulation during power-off and power-on (ink filling) mode

Supply yields

Ink bottle capacity
1,000 ml—cyan, magenta, yellow, black, clear, primer
850 ml—white

Ink capacity of device
2,500 ml per colour

Waste ink tank—bottle type
2,500 ml

Supported media

Substrates
Acrylic, PETG, PC, PVB, glass, aluminium, steel, wood, MDF

Maximum size
2,110 x 3,210 mm

Maximum thickness
110 mm or less

Weight
45 kg/m² or less

Interfaces - standard: USB 3.0

Print speed colour

50.1 m² per hour—Standard Mode
100.2 m² per hour—Draft Mode
66.8 m² per hour—Production Mode
16.6 m² per hour—High Quality Mode

Printing technology

On-demand piezo inkjet system

Ink type

Ricoh UV ink

Usable ink
Cyan, magenta, yellow, black, white, clear, primer

Ink configuration

4-Colour
C, M, Y, K

4-Colour + primer
C, M, Y, K + primer

5-Colour
C, M, Y, K, W
C, M, Y, K, Cl

5-Colour + primer
C, M, Y, K, W + primer
C, M, Y, K, Cl + primer

6-Colour
C, M, Y, K, W, Cl

6-Colour + primer
C, M, Y, K, W, Cl + primer

Printhead

Ricoh Gen5E (MH5421) x 12

Print resolution

635 x 1,800 dpi

Print margin

0 mm—left and right
0 mm—front and rear

Head height adjustment

Contact sensor on PC software

Drawing mode (scan x feed)

Uni-directional or bi-directional
635 x 600 dpi
635 x 900 dpi
635 x 1,200 dpi

Maximum printable area

2,100 x 3,200 mm

Image quality

Density chroma
1.2 or more—black
55.0 or more—cyan
65.0 or more—magenta
85.0 or more—yellow

Gamut size
280,000 or more

Glossiness
4.4 or more—60°
0.5 or more—20°

Whiteness—chroma
3.0 or less

White opacity—black density
0.17 or less

Colour difference—in a picture, between pictures
Delta E ≦3—solid colour and halftone

Grey balance (4K)—chroma
4.0 or less

Graininess
10.0 or less

Line gap
120±30%

Pencil hardness
HB or more

Resistance—test acceptance criteria
Flex
Not to crack under flex resistance test within 100 mm in diameter

Humidity
Not to be issued 72 hours after

Water
Not to be issued 24 hours after

Acid proof
Not to crack 24 hours after

Alkali
Not to crack 24 hours after

Crash proof
20 cm or more

Light fastness
Delta E ＜3, 3 months after

Weather
Delta E ＜3, 3 months after

Other print features

Ioniser, 8-section vacuum adjustment, uni-direction setting, white skip (blank area), multiple layer printing, remote service (operation log, job, printer, version information), output log of driver software to text file

Other supported environments

Printer control software requirements
Windows 7, 10—64-bit
Intel Core i5—2GHz or more recommended
8 GB RAM or more
2 GB or more free HDD space for installation
100 GB free HDD space for operation
1,152 x 854-pixels screen resolution with 16-bit colour or higher

SAi PhotoPrint DX requirements
Windows 7, 8, 10
4 GB RAM or more recommended
1,152 x 854-pixels screen resolution with 16-bit colour or higher
400 MB free HDD space for base program installation
4 GB free HDD space for operation such as ICC profile creation

Supported languages

Display languages
Japanese, English, French, German, Spanish, Italian, Dutch, Portuguese

Standard: SAi PhotoPrint DX

Power source

AC 380–415 V, 25 A, 50/60 Hz (3-phase 4-wire with PE) x 1 line

Sound power level

75 dB(A) or less

Environmental standards

Restriction of Hazardous Substances (RoHS)
REACH
Directive 94/62/EC on packaging
WEEE

Green labels

GreenGuard Gold—for Ricoh Pro UV ink

Safety standards

Machinery Directive 2006/42/EC Annex 1
ISO 12100:2010 (Type A)
ISO 13849-1 (Type B)
EN60204-1 (Type B)
EN1010-2:2004/A1:2010 (Type C)
EN1010-2:2006/A1:2010 (Type C)

Electromagnetic Compatibility (EMC) standards

EMC Directive

Operating environment

Temperature
15–30ºC

Humidity
45–80%
