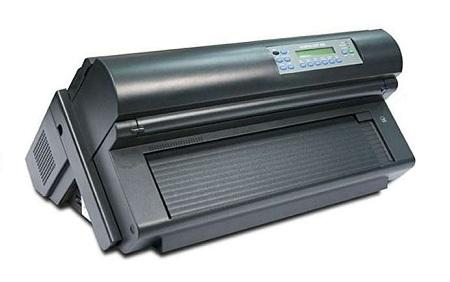

Compuprint 4247-X03

Reliablevery high-speed printing for demanding business environments

  • Continuous forms: 3" to 17" (76 mm to 432 mm) width, 3" to 24" (76 mm to 610 mm) length
  • 20.000 hours at 25% D.C.
  • Centronics Parallel, Serial (RS-232C), USB 2.0, Ethernet 10/100 Basel
  • Support for two continuous forms paths
    Dual front tractors
    Paper parking, switching and linking
    Automatic forms loading and thickness adjustment

Reliablevery high-speed printing for demanding business environments

With print speeds up to 800 cps, 18 pin print-head, the Compuprint 4247-X03 is designed for high output performance in demanding print environments -from the office to the warehouse- the Compuprint 4247-X03 industrial strength printer provides professional reliability at a cost of ownership that is surprisingly attractive.

With an impressive functional lifetime, low per-page costs, and worry free operation. For mission-critical applications whre reliability is paramount, or when the cost of printing is a concern, the Compuprint 4247-X03 is ready to support core business needs and protect the bottom line.

Compuprint 4247-X03 is available with different interface configurations: Parallel/Serial/USB or Parallel/Ethernet and Parallel/Ethernet IPDS.

Download Brochure



Specifications

Bar Codes
UPC-A, UPC-E, UPC-2, UPC-5, EAN-8, EAN-13, Code 3 of 9, Code 128, Interleaved 2 of 5, Industrial 2 of 5, Codabar, MSI and Matrix 2 of 5
Consumables (now used in Yields field)
25 million characters black inked ribbon
Emulations

Standard: Epson FX, IBM Proprinter 4202 III XL and IBM 2381 Personal Printer and native 4247 mode

Optional Ethernet IPDS: IBM 4224, IBM 4230 and native 4247 mode

Environmental conditions
Relative Humidity: 40% to 60% (non condensing), RH Temperature: 500 to 104°F (10° to 40°C)
Operating Relative Humidity: 5% to 95% (non condensing), RH Temperature: -31°F to 149°F (-350 to 65°C) Storage
Acoustics Printing (in DP text mode): 4247-X03: 55.7 dBA
Heat Output
147 W typical (500 BTU/hr), 23 W Idle (75 BTU/hr)
Input Buffer
Up to 128Kb
Interfaces
Centronics Parallel, Serial (RS-232C), USB 2.0, Ethernet 10/100 Basel
Max Print Speed
Data processing mode 800 cps
DP text mode 400 cps
NLQ mode 200 cps
Paper Sizes
Continuous forms: 3" to 17" (76 mm to 432 mm) width, 3" to 24" (76 mm to 610 mm) length
Paper handling
Support for two continuous forms paths
Dual front tractors
Paper parking, switching and linking
Automatic forms loading and thickness adjustment
Physical characteristics
WxDxH: 26.4" x 17.7" x 12.6" (670 mm x 450 mm x 320 mm) 46.3 lb./21 kg (weight)
Power Consumption
Maximum, 220 Watts, Typical 155 Watts, Power Saver Mode 20 Watts
Power Frequency
50/60 Hz
Power Voltage
90 to 244 Vac
Print options
13.6"/345.44 mm maximum print line
Vertical spacing:
6 or 8 lpi selectable from operator panel for text
3, 4, 6, 8 or 9 Ipi selectable under program control for text
1/144" increments under program control available for graphics
Horizontal spacing:
10, 12, 15, 16.7, 17.1 and 20 cpi
Proportional spacing is available in DP text and NLQ mode
Rated Printhead Life
800 million draft characters
Reliability MTBF
20.000 hours at 25% D.C.
Throughput
660 pages per hour (ECMA 132)
Workload
57.000 pages per month
