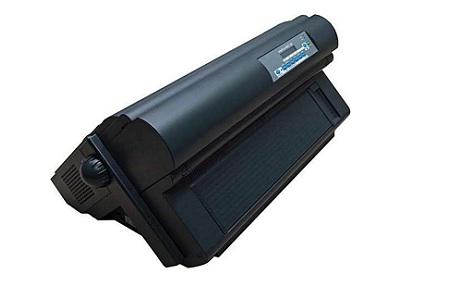

Compuprint 4247-L03

Reliability and forms flexibility for low and mid volume supply chain output, office applications and demand document retail environments

  • Continuous forms: 3" to 17" (76 mm to 432 mm) width, 3" to 24" (76 mm to 610 mm) length
  • 20.000 hours at 25% D.C.
  • Centronics Parallel, Serial (RS-232C), USB 2.0, Ethernet 10/100 BaseT
  • Support for two continuous forms paths
    Dual front tractors
    Paper parking, switching and linking
    Automatic forms loading and thickness adjustment

Reliability and forms flexibility for low and mid volume supply chain output, office applications and demand document retail environments

The Compuprint 4247-L03 is a low-cost alternative for supply chains, offices and retail stores with low- to mid-volume output requirements. The printer is exceptionally reliable and provides forms flexibility, support for wide-format printing. Provided with 24 pin print-head prints at a speeds up to 720 cps, up to two straight continuous form paper paths for outstanding paper-feeding reliability are available thanks to the optional dual front 4-pin tractor.

The Compuprint 4247-L03 is built to deliver dynamic perfomance in the most demanding and rigorous environments.

Compuprint 4247-L03 is available with different interface configurations: Parallel/Serial/USB or Parallel/Ethernet.

Download Brochure



Specifications

Bar Codes
UPC-A, UPC-E, UPC-2, UPC-5, EAN-8, EAN-13, Code 3 of 9, Code 128, Interleaved 2 of 5, Industrial 2 of 5, Codabar, MSI and Matrix 2 of 5
Consumables (now used in Yields field)
15 million characters black inked ribbon
Emulations
IBM Proprinter: XL24 /XL24 ACM, 2391 Personal Printer. Epson ESC/P LQ series, ANSI X3.64 and CPG Native Commands Set Epson LK1600 (for DBCS model)
Environmental conditions
Relative Humidity: 40% to 60% (non condensing), RH Temperature: 500 to 104F (100 to 40°C) Operating Relative Humidity: 5% to 95% (non condensing), RH Temperature: -31°F to 149°F (-350 to 65°C) Storage Acoustics Printina: 53.9 to 59.7 dBA deoendina on conflauration
Heat Output
154 W typical (526 BTU/hr), 22 W Idle (75 BTU/hr)
Input Buffer
Up to 128Kb
Interfaces
Centronics Parallel, Serial (RS-232C), USB 2.0, Ethernet 10/100 BaseT
Max Print Speed
Draft mode 720 cps
Best Draft mode 400 cps
NLQ mode 262 cps
LQ mode 133 cps
Paper Sizes
Continuous forms: 3" to 17" (76 mm to 432 mm) width, 3" to 24" (76 mm to 610 mm) length
Paper handling
Support for two continuous forms paths
Dual front tractors
Paper parking, switching and linking
Automatic forms loading and thickness adjustment
Physical characteristics
WxDxH: 26.4" x 17.7" x 12.6" (670 mm x 450 mm x 320 mm)
46.3 lb./21 kg (weight)
Power Consumption
Maximum, 240 Watts, Typical 160 Watts, Power Saver Mode 22 Watts
Power Frequency
50/60 Hz
Power Voltage
90 to 244 Vac
Print options
13.6"/345.44 mm maximum print line
Vertical spacing:
6 or 8 lpi selectable from operator panel for text
3, 4, 6, 8 or 9 Ipi selectable under program control for text
1/144" increments under program control available for graphics
Horizontal spacing:
10, 12, 15, 16.7, 17.1 and 20 cpi, 10 cpi in Fast draft mode
Proportional spacing is available in DP text and NLQ mode
Rated Printhead Life
800 million draft characters
Reliability MTBF
20.000 hours at 25% D.C.
Throughput
610 pages per hour (ECMA 132)
Workload
50.000 pages per month
