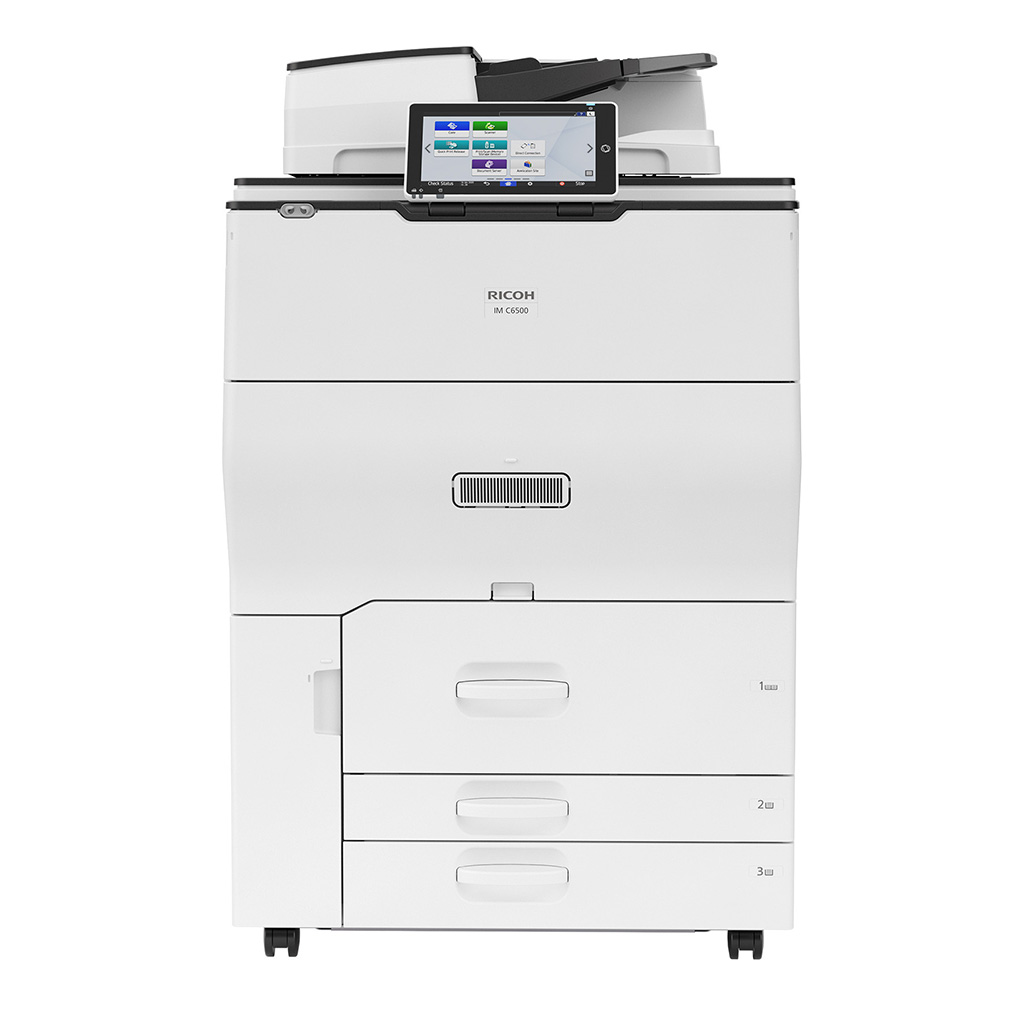

IM C6500 Full Colour Multi Function Printer

Copy, print, scan, optional fax
Prints up to 65 ppm
1,200 x 4,800 dpi
8,100-sheet max input

Configure your device here

Link List

Smart. Reliable. Quality.

Outstanding performance with superior image quality.

Work faster and smarter with these departmental powerhouses
Extending production-like performance to the office environment, RICOH IM C6500 offers impressive speed of up to 65ppm and bring high-quality colour prints and performance to your business. From creation to output, they are designed to help you increase productivity and efficiency, maximising your return on investment.
Navigate with ease, even remotely
The intuitive 10.1-inch Smart Operation Panel allows you to navigate with simple touch and swipe gestures, much like on your smartphone. A variety of mobile connectivity options enable remote printing as well as scanning to the office network or cloud from any smart device with built-in support for NFC, Apple AirPrint^® or Mopria^®. All this is underpinned by a unique suite of support apps from RICOH Smart Integration.
Save on future investments with our future-proofed solutions
With RICOH IM C6500, you no longer have to purchase new equipment to meet your changing document needs as your business grows. RICOH Always Current Technology allows new features to be installed on your existing RICOH IM C6500 on demand. Simply select from a range of smart applications, enhancements and software to manage your document needs as they change.
Gain even greater control of print and scan management
There is so much more you can do with the additional features you will find on RICOH IM C6500. Smaller sized documents can be scanned easily with the new small sized paper scan unit and you can improve scanning accuracy by simply adding an extra double feed detection unit. With our new multi-folding unit, you can now create and print professional-grade flyers any time, saving on the cost of outsourced printing services.

Download PDF brochure

Specifications

Functions: Copy, print, scan, optional fax
Colour: Yes
HDD: 640 GB (320 GB x 2)
Memory - standard: 4 GB
Operation panel: 10.1-inch Smart Operation Panel (G2.5)

Physical dimensions (WxDxH)—mainframe: 750 x 880 x 1,225 mm
Weight—mainframe: 250 kg or less

Standard input capacity (sheets): 3,700
Maximum input capacity (sheets): 8,100
Maximum output capacity (sheets): 3,500
Paper input configuration - standard: 1,250-sheet x 2 tandem tray, 2 x 550-sheet paper input trays, 100-sheet bypass tray, 220-sheet SPDF, Duplex unit
Supported media: Plain paper¹, recycled paper, colour paper, special paper 1–3, letterhead, pre-printed paper, pre-punched paper, bond paper, card stock, thin paper, plain paper 1–2, middle thick, thick paper 1–4

¹—Not displayed as paper type
Maximum paper size: 13" x 19.2"
Media weight (g/m2): 52.3–300

Interfaces - standard: Mainframe
10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet)
USB Host Type A—2 ports
USB Device Type B—1 port

Smart Operation Panel
IEEE 802.11 b/g/n (Wireless LAN)¹
Bluetooth 4.2²
SD Card Slot—SDHC memory card
USB Host Type A—USB Flash memory
USB Host Type A—1 port for USB keyboard (optional)²
USB Host Type mini B—for NFC card reader (optional)²
microSD card slot—ROM storage expansion²
NFC Tag_²

¹—Limited printing for a peer-to-peer mobile device via RICOH Smart Device Connector
²—Cannot be used for printing
Interfaces - optional: IEEE 1284
Wireless LAN (IEEE 802.11 a/b/g/n)¹
Device Server Option Type M37 (additional NIC port)
Copy Connector Type M25

¹—Cannot be used with Bluetooth at the same time
Network protocols - standard: TCP/IP (IPv4, IPv6)

Copy speed: 65 cpm
First copy time: 5.5 seconds—black and white
7.5 seconds—colour
Copy resolution: 600 x 600 dpi
Zoom range: 25%–400% in 1% steps
Enlargement ratios: 400%, 200%, 141%, 122%, 115%
Reduction ratios: 93%, 82%, 75%, 71%, 65%, 50%, 25%
Duplex copy: Simplex to duplex, duplex to duplex—with SPDF, book to duplex, front and back to duplex
Book copy: Booklet, magazine, layout, and booklet
ID card copy: Supported

Print speed colour

65 ppm

Print speed black and white

65 ppm

First print time

5.5 seconds or less—black and white; 7.5 seconds or less—colour

Print resolution

1,200 x 4,800 dpi—when printing
2,400 x 4,800 dpi—when copying

Page description languages (PDLs)

Standard
PCL 5c, PCL 6, PostScript3 emulation, PDF Direct emulation

Optional
Adobe PostScript 3, Adobe PDF Direct, XPS, IPDS

Printer drivers

Standard
PCL 5c, PCL 6, PostScript3 emulation

Optional
Adobe PostScript 3

Duplex printing

Standard

Mobile printing

AirPrint, Mopria®, RICOH Smart Device Connector

Print from USB/SD

Supported

Scan speed

A4 LEF via SPDF
120 ipm—simplex
240 ipm—duplex

Scan methods

Scan to USB/SD, Scan to email, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF (embedded)

Colour scanning

Standard

Scan resolution

100 dpi, 150 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi

Scan to file types

Single- and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF, PDF/A
Single- and multi-page High-Compression PDF

Scan to email

Protocols
SMTP gateway, TCP/IP

Authentication
SMTP authentication, POP before SMTP authentication

Scan resolution
100 dpi, 150 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Scan to email file types
Single-page
TIFF, JPEG, PDF, PDF/A, High-Compression PDF, Encrypted PDF, Searchable PDF

Multi-page
TIFF, PDF, PDF/A, High-Compression PDF, Encrypted PDF, Searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

Scan to folder

Protocols
SMB, FTP, WSD (Web Services on Devices for Scanning), DSM

Security
Client folder logon, transmission encryption of logon name and password

Resolution
100 dpi, 150 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Search for client folders
SMB—browsing directly to the designated folder
FTP—by folder name

Scan to folders file types
Single-page
TIFF, JPEG, PDF, PDF/A, High-Compression PDF

Multi-page
TIFF, PDF, PDF/A, High-Compression PDF

TWAIN scanning

Scan mode
Standard, Photo, OCR, Filing

Scan resolution
100–1,200 dpi
Note: 1,200 dpi scanning is supported only with A5 or smaller paper size.

Fax types

G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax

Fax circuit

PSTN, PBX

Fax compatibilty

ITU-T (CCITT), G3—maximum 3 lines

Fax modem speed

2,400 bps–33.6 Kbps—G3, standard with automatic shift down

Fax compression methods

MH, MR, MMR, JBIG

Fax resolution

Standard mode
200 x 100 dpi—8 x 3.85 lines/mm

Detail mode
200 x 200 dpi—8 x 7.7 lines/mm

Super fine mode
400 x 400 dpi—8 x 15.4 lines/mm
400 x 400 dpi—16 x 15.4 lines/mm

Note: Super fine mode is supported with the optional SAF memory.

G3 fax transmission speed

2 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission

Fax SAF memory capacity

Standard—4 MB
With optional SAF memory—60 MB

Fax memory backup

1 hour

Quick dials

2,000 numbers

Data Overwrite Security System (DOSS) - Standard: Yes
Data Overwrite Security System (DOSS) - Optional: Type M19—available for customers who require their devices to comply with ISO 15408 Common Criteria certification
Encryption: PDF, Secure print, WEP, WPA encryption
Authentication password encryption
Encryption of data sent via Scan to email and Fax forwarding (S/MIME)
Authentication: 802.1x wired authentication
IEEE 802.11i security (WEP, WPA)
IPv6
Network user authentication
Quota setting/Account limit
User authentication—Windows and LDAP via Kerberos, basic, user code
User code authentication
Wi-Fi Protected Setup (WPS) support

Windows: Windows 7
Windows Server 2008
Windows Server 2008 R2
Windows 8.1
Windows Server 2012
Windows Server 2012 R2
Windows 10
Windows Server 2016
Windows Server 2019
Macintosh: OS X Native v10.12 or later—PostScript 3 only
Unix: Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise v4, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—6.1, 7.1, 7.2
SAP: Environment—R/3, S/4
Platform—SAP R/3 (Release versions 3.0 and higher), SAP R/3 Enterprise, mySAP ERP (2004 and higher), SAP HANA
Page Description Language (PDL)—PCL
Character set—Latin-1, Latin-2, Unicode
Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5 interleaved/Industrial/Matrix, MSI, USPS Postnet, UPC/EAN
OCR fonts—OCR A, OCR B
Other supported features—Input/Output Bin, Duplex, Stapling, Punching, Resolution, Collation, EconoMode / TonerSaving, Smoothing, Page Protect, Auto Tray Change/Optional Tray Select, User Authentication

Standard: @Remote Embedded
Web Image Monitor
Optional: @Remote Office
@Remote Enterprise Pro
Global Scan NX
Card Authentication Package
Enhanced Locked Print NX
Device Manager NX Lite
Device Manager NX Accounting
RICOH Streamline NX
Mobile apps: RICOH Smart Device Connector

Power source: 220–240 V, 12–10 A, 50/60 Hz
Power consumption: 2,400 W or less—maximum power
1,147.4 W or less—operating power, black and white
1,270 W or less—operating power, colour
185.86 W—Ready Mode
168 W—Low Power Mode
0.74 W—Energy Saver Mode (Sleep Mode)
Typical Electricity Consumption (TEC): 1.201 kWh (nominal), 1.224 kWh (guaranteed)
Warm-up time: 40 seconds
Power saving mode: 45 minutes shift time—Energy Saver Mode (Sleep Mode)
15 minutes shift time—Low Power Mode
Recovery time: 38 seconds—Energy Save Mode (Sleep Mode)
7.9 seconds—Low Power Mode
Other environmental features: Eco-friendly indicator screen, System reset timer
