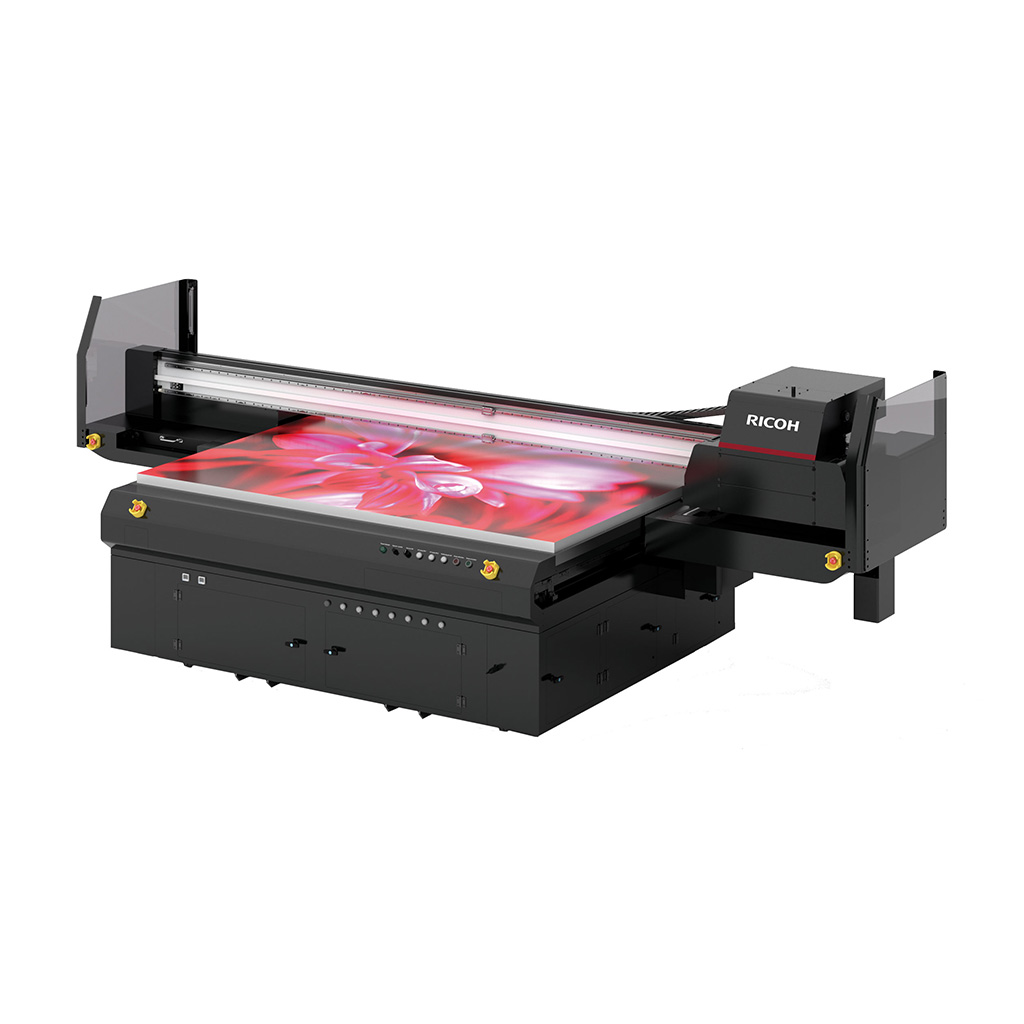

Pro TF6250 Industrial inkjet printer

  • 64 m2 per hour print speed
  • Two ink types
  • Up 110 mm media thickness
  • Easy maintenance
Related Links
Widen your print horizons

Expand your business’s capabilities with wide-format technology from the inkjet experts

Request a demo

Print on almost anything with the new Pro TF6250 flat-bed printer

Backed by over 40 years of innovation, Ricoh are the inkjet experts.

Our new Pro TF6250 flat-bed printer powers printing on almost any surface or substrate.

The powerful but compact Pro TF6250 is ready to take on the sign, graphics and décor market with direct printing onto rigid substrates and on pre-cut panels up to 110mm thick.

Unlock more print choice with the inkjet specialists.


Download PDF brochure

Request a demo

Specifications

Functions
Print
Colour
Yes
Device configuration
Console
Physical dimensions (WxDxH)—mainframe
4,812 x 2,200 x 1,580 mm
Weight—mainframe
1,500 kg or less
Minimum space requirements
1,050 mm—front
1,000 mm—left
1,000 mm—right
1,550 mm—rear
Average monthly volume
667 square metres per month
Max monthly volume
1,334 square metres per month
Machine life
56,028 square metres or 7 years, whichever comes first
PM cycle
8,004 square metres or 12 months
Mean Copies Between Calls (MCBC)
2,834 square metres
Maintenance

Pattern 1
Physically check and run adjustment via pattern printing—nozzle check and dot position adjustment

Pattern 2
Individual maintenance—head and air purge cleaning

Pattern 3
Cleaning sequence setting during power-off—white ink only
Setting white ink circulation during power-off and power-on (ink filling) mode

Supply yields

Ink bottle capacity
1,000 ml—cyan, magenta, yellow, black, clear, primer
850 ml—DG130 white
900 ml—GP120 white

Ink capacity of device
2,500 ml per colour

Waste ink tank—bottle type
2,500 ml

Supported media

Substrates
Acrylic, PETG, PC, PVB, glass, aluminium, steel, wood, MDF

Maximum size
2,510 x 1,310 mm

Maximum thickness
110 mm or less

Weight
45 kg/m2 or less

Interfaces - standard

USB 3.0

Print speed colour
4-Colour Mode
116 m² per hour—Draft Mode
64 m² per hour—Production Mode
48 m² per hour—Standard Mode
32 m² per hour—Quality Mode
16 m² per hour—High Quality Mode
Printing technology
On-demand piezo inkjet system
Ink type

Ricoh UV ink

Usable ink
Cyan, magenta, yellow, black, white, clear, primer

Ink configuration

Standard—6-Colour + primer
C, M, Y, K, W, Cl + primer

Double white—5 colour
C, M, Y, K, W, W

Printhead
Ricoh Gen5E (MH5421) x 12
Print resolution
635 x 1,800 dpi
Print margin
0 mm—left and right
0 mm—front and rear
Head height adjustment
Contact sensor on PC software
Maximum printable area
2,500 x 1,300 mm
Other print features
Ioniser, 4-section vacuum adjustment, uni-direction setting, white skip (blank area), multiple layer printing, remote service (operation log, job, printer, version information), output log of driver software to text file
Other supported environments

Printer control software requirements
Windows 7, 10—64-bit
Intel Core i5—2GHz or more recommended
8 GB RAM or more
2 GB or more free HDD space for installation
100 GB free HDD space for operation
1,152 x 854-pixels screen resolution with 16-bit colour or higher

SAi PhotoPrint DX requirements
Windows 7, 8, 10
4 GB RAM or more recommended
1,152 x 854-pixels screen resolution with 16-bit colour or higher
400 MB free HDD space for base program installation
4 GB free HDD space for operation such as ICC profile creation

Supported languages
Display languages
Japanese, English, French, German, Spanish, Italian, Dutch, Portuguese
Standard
SAi PhotoPrint DX
Power source
AC 380–415 V, 20 A, 50/60 Hz (3-phase 4-wire with PE) x 1 line
Sound power level
75 dB(A) or less
Environmental standards
Restriction of Hazardous Substances (RoHS)
REACH
Directive 94/62/EC on packaging
WEEE
Green labels
GreenGuard Gold—for Ricoh Pro UV ink
Safety standards
Machinery Directive 2006/42/EC Annex 1
ISO 12100:2010 (Type A)
ISO 13849-1 (Type B)
EN60204-1 (Type B)
EN1010-2:2004/A1:2010 (Type C)
EN1010-2:2006/A1:2010 (Type C)
Electromagnetic Compatibility (EMC) standards
EMC Directive
Operating environment

Temperature
15–30ºC

Humidity
40–80%
