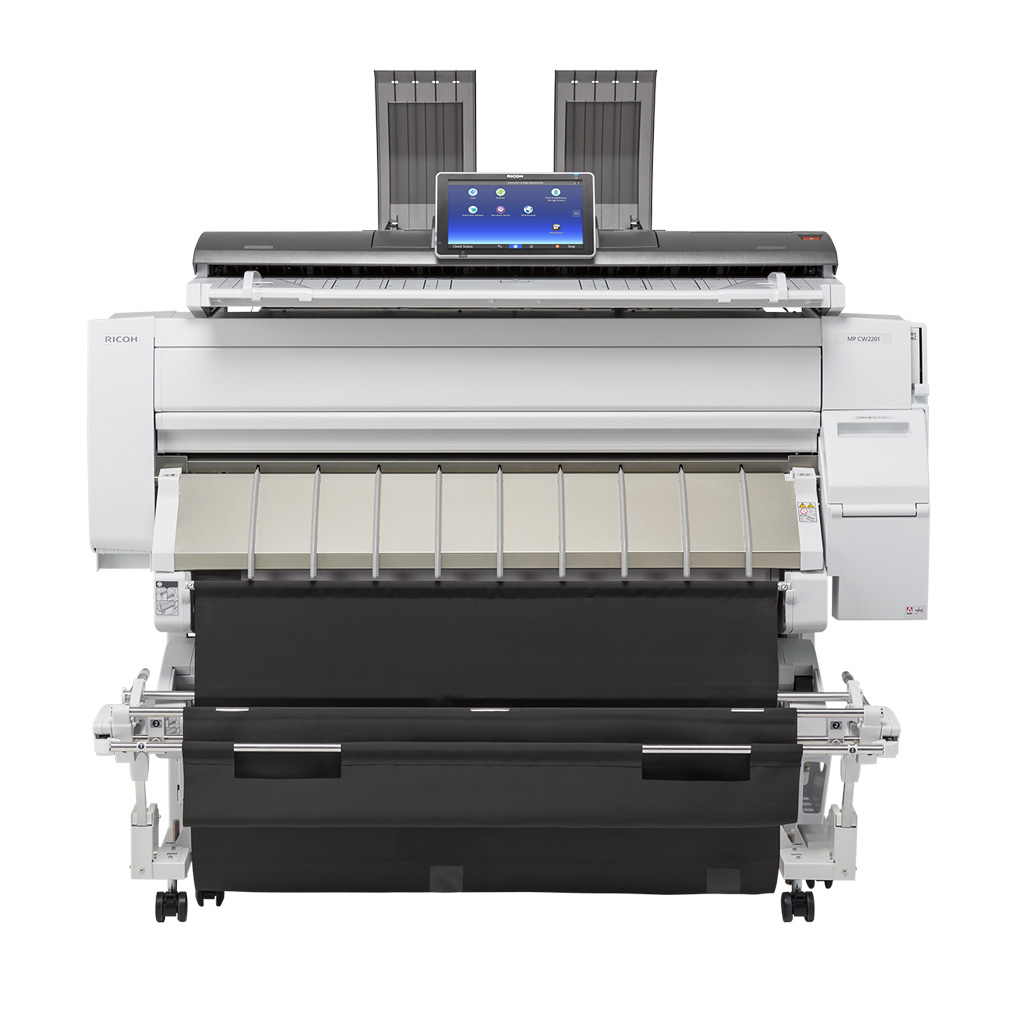

MP CW2201SP Colour wide format MFP

Print, copy, and scan
3.8 ppm—A1 black and white
1,200 x 1,200 dpi
15 m max print length

Configure your device here

Brilliant colour-rich CAD drawings, printed fast

When you work in an industry where the smallest details need clarity, and good design matters. The MP CW2201SP is a wide format printer that lets you scan and send files easily.

Energy saving
Low power mode and Sleep Mode for low energy consumption
No smudges
Fast drying ink and minimal dot spread keep print jobs clean
Easy access
Front panel access replenishes paper and ink. Paper basket collects and stacks output
Compact size
Space saving design for easy fit in small offices

Printing performance, scanning flexibility

Print wide format drawings for construction, engineering and architecture offices in high resolution colour. Copy, print and scan A1 and A0 documents with vivid resolution. The large operation panel uses intuitive touchscreen functionality where you can tap into cloud based applications to simplify tasks, create shortcuts. The built-in scanner delivers files where you need them, like an email or folder. Easily print or scan straight from a USB or SD card. Improve data integrity with added security features.

Intuitive design for innovative creators

Architects, engineers, contractors and designers – those who can truly appreciate smart design – will embrace this system’s ergonomic features and unique clamshell configuration. It offers easy front access to paper rolls and ink cartridges. An attached paper basket neatly collects and stacks printed output.

Download PDF brochure

Specifications

Functions: Copy, print, scan
Colour: Yes
Printer controller - standard: GWNX
HDD: 320 GB
Document server: 320 GB—document server HDD capacity
3,000 documents
1,000 pages per document
3,000 pages of all documents
CPU: 1.75 GHz
Memory - standard: 4 GB
Operation panel: 10.1-inch Smart Operation Panel

Physical dimensions (WxDxH)—mainframe: 1,384 x 675 x 1,220 mm
Physical dimensions (WxDxH)—other: 1,108 x 398 x 432 mm—roll feeder
1,049 x 160 x 160 mm—roll holder
Weight—mainframe: 120 kg
Weight—other: 14.5 kg—roll feeder
1.5 kg—roll holder
Minimum space requirements: Front—2,000 mm
Left—600 mm
Back—600 mm
Right—600 mm

Average monthly volume: 120 metres
Max monthly volume: 1,200 metres
Machine life: 72 km or 5 years, whichever comes first
PM cycle: 16,840 copies (A1 LEF) or 10,000 metres
Mean Copies Between Calls (MCBC): 5,260 copies (A1 LEF) or 10,000 metres

Supply yields: Black and white printing
529 copies or 314 m per 200 ml black cartridge
708 copies or 421 m per 100 ml cyan cartridge
699 copies or 415 m per 100 ml magenta cartridge
700 copies or 416 m per 100 ml yellow cartridge

Colour printing
352 copies or 209 m per 200 ml black cartridge
472 copies or 280 m per 100 ml cyan cartridge
466 copies or 277 m per 100 ml magenta and yellow cartridge

Note: All toner yields are measured using A1 LEF paper with 6% black and white/20% colour (5% x 4 colours) coverage, and a 40% colour ratio, 60% black and white ratio.

Waste tank capacity
425 ml or 5 years, whichever comes first
120 m
40% colour ratio

Waste tank use conditions
23 degrees Celcius and 50% humidity

Standard input capacity (sheets)

Roll feed
One roll each—297–914 mm wide x 150,000 mm long, or max diameter 176 mm

Bypass
1 sheet

Standard output capacity (sheets)

10 sheets plain paper—packet stack

Note: 2-inch core rolls can’t be stacked because the curvature factor is small.

Paper input configuration - standard

1-sheet bypass tray, 1-roll feeder

Paper input configuration - optional

1-roll feeder, roll holder

Paper output configuration - standard

Output basket

Supported media

Plain paper, recycled paper, inkjet plain paper, tracing paper, matte film, coated paper, coated paper—CAD, special paper

Maximum paper size

914.4 x 15,000 mm

Media weight (g/m2)

51–220

Interfaces - standard: 10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)
USB host mini Type A
USB 2.0
SD card slot
Interfaces - optional: IEEE 802.11a/g/n (Wireless LAN)
Network protocols - standard: TCP/IP (IPv4, IPv6)
MIB support: Standard
MIB-II (RFC1213)
Host Resources MIB (RFC1514)
Printer MIB (RFC1759)

Private
Ricoh original MIB

Copy speed

A1 LEF—black and white
2.0 cpm—Standard Mode
3.8 cpm—High Speed Mode

A1 LEF—colour
1.2 cpm—Standard Mode
2.1 cpm—High Speed Mode

A0 SEF—black and white
1.1 cpm—Standard Mode
1.9 cpm—High Speed Mode

A0 SEF—colour
0.6 cpm—Standard Mode
1.1 cpm—High Speed Mode

First copy time

A1 LEF—black and white
41 seconds—Standard Mode
29 seconds—High Speed Mode

A1 LEF—colour
84 seconds—Standard Mode
53 seconds—High Speed Mode

A0 SEF—black and white
71 seconds—Standard Mode
51 seconds—High Speed Mode

A0 SEF—colour
155 seconds—Standard Mode
81 seconds—High Speed Mode

Copy resolution

600 x 600 dpi—Standard Mode
600 x 300 dpi—High Speed Mode

Original paper width

210, 257, 297, 364, 420, 440, 490, 515, 594, 620, 625, 660, 680, 707, 728, 800, 841, 880, 914 mm

Roll paper width

297, 364, 420, 440, 490, 515, 594, 620, 625, 660, 680, 707, 728, 800, 841, 880, 914 mm

Original feed

Sheet

Maximum size

914 x 15,000 mm—roll feeder
914 x 2,000 mm—bypass

Minimum size

210 x 210 mm

Set position

Centre

Paper cut method

Preset size, synchronised cut, variable cut

Image shift

Front, rear, left, right—0 to ±200 mm in 1 mm steps

Emergency stop

Supported—key

Quantity selection

1–99

Copy reservations

8 reservations

Job programs

Up to 25 program modes

Zoom range

25%–400% in 0.1% steps

Enlargement ratios

141.4%, 200%, 282.8%, 400%

Reduction ratios

25%, 35.4%, 50%, 70.7%

Image density adjustment

7 levels, black and white, greyscale, full colour—manual ; black and white, greyscale—Auto density selection

Image density adjustment

Automatic, manual—9 steps

Copy modes

Black and white
Drawing mode—default
Text mode, Generation mode, Map mode, Background Line mode, Pasted Original mode, Highlighter mode
Text/Photo mode, Photo mode—printed, glossy, copied

Colour
Drawing mode—default
Text mode, Generation mode, Map mode
Text/Photo mode, Photo mode—printed, glossy, copied

Automatic paper selection (APS)

1st roll, 2nd roll (optional), bypass tray

Combine copy

2, 4, or 8 into 1 up to A1

Interrupt copy

Not supported

Auto tray change

Supported

User codes

1,000 user codes, 8 digits in each code

Slip sheet

Supported

Electronic sorting

Rotate sort up to A1

Margin/erase adjustment

Margin adjustment
0–200 mm in 1 mm steps

Erase Border
2–99 mm in 1 mm steps

Inside, Outside
0–1,220 mm in 0.1 mm steps

Image adjustment

7 levels—sharpen/soften
9 levels—contrast
9 levels—background density
9 levels—Under Colour Removal (UCR) adjustment
5 levels—colour sensitivity
15 colours—colour program registration

Image creation

Repeat, mirror, positive/negative, double copy—up to A1

Colour creation

Colour conversion, colour erase

Stamps

8 stamps, 2 sizes—presets
40 stamps can be registered—user presets
5 styles—date stamp
6 styles—page stamp
9 digits supported, zero suppression not supported—Bates stamping

Image rotation

Supported

Other copy features

Auto density adjustment, Colour adjustment, Colour balance adjustment, Auto start, Job preset, Sample copy, Simplified Display, Login/logout button, Job log data report, Document server, Unauthorised copy prevention, Partial copy—210–15,000 mm length can be defined as partial, OHP slip sheet—bypass only, Paper type display—standard tray, Image border—3 mm or less all edges (roll paper); 3 mm or less leading edge/18 mm or less training edge/3 mm or less right/left edges (bypass)

Print speed colour

Speed Priority (Drawing) Mode
A1 LEF
2.1 ppm

A0 SEF
1.1 ppm

Print speed black and white

Print speed—Speed Priority (Drawing) Mode
A1 LEF
3.8 ppm

A0 SEF
1.9 ppm

Printing process

On demand Piezo inkjet system

Ink type

Pigment-based ink—all four colours

Print resolution

Speed Priority (Drawing) Mode, Speed Priority Mode
600 x 300 dpi

Standard Mode
600 x 600 dpi

Quality Priority Mode with coated paper, film (matte) and special paper
1,200 x 1,200 dpi

Quality Priority Mode with other paper types
600 x 600 dpi

Note: Some paper types not supported in Speed Priority (Drawing) Mode.

Print resolution by paper type
For information about the print resolution by paper type, refer to the Sales handbook.

Page description languages (PDLs)

PostScript3, PDF Direct, RP-GL/GL2, RTIFF, Media Print JPEG, Media Print TIFF

Printer drivers

PostScript 3, HDI

Fonts

136 Roman fonts—PostScript 3

Print from USB/SD

Supported—JPEG, TIFF, PDF

Other print features

One direction, Unauthorised copy prevention—print, WSD printer, Colour matching, POP, Colour Universal Design (CUD), AutoCAD support, Ink Save Mode—save ratio 50%, available with PostScript 3, Supported AutoCAD versions with HDI driver—2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

Scan speed

Black and white
80 mm/second—600 dpi
160 mm/second—200 dpi

Colour
26.7 mm/second—600 dpi
40 mm/second—200 dpi

Scan methods

Scan to USB/SD, Scan to email, Scan to folders (FTP, SMB), Scan to URL

Colour scanning

Supported

Scan mode

Scan modes
Black and white
Text/Line Art—default, Text, Text/Photo, Grayscale

Colour
Text/Photo, Photo

Scan resolution

150, 200, 300, 400, 600 dpi—Scan to email/folder
150–2,400 dpi—TWAIN

Note: 2,400 dpi is only supported using A4 paper.

Automatic size detection

Auto detect, preset paper size, custom size

Scan area

210 x 210 mm—minimum

Black and white—maximum
914.4 x 15,000 mm

Note: Optional file format converter is required when the paper length is greater than 2,774 mm.

Colour—maximum
914.4 x 2,774 mm—600 dpi
914.4 x 4,161 mm—400 dpi
914.4 x 5,548 mm—300 dpi
914.4 x 8,323 mm—200 dpi
914.4 x 11,097 mm—150 dpi

Note: PDF1.4 is supported up to 5,080 mm.

sRGB support

Standard

Scanner compression methods

Black and white
MH, MR, MMR—default, JBIG2

Note: JBIG2 supported using PDF file format.

Colour
5 levels—JPEG

Image density adjustment

7 levels, black and white, greyscale, full colour—manual ; black and white, greyscale—Auto density selection

Scan to email

Protocols
SMTP gateway, TCP/IP

Authentication
SMTP, POP before SMTP

Scan resolution
150, 200—default, 300, 400, 600 dpi

File types
Single-page
TIFF, JPEG, PDF, high compression PDF, PDF/A, Searchable PDF

Multi-page
TIFF, PDF, high compression PDF, PDF/A, Searchable PDF

Note: Searchable PDF supported by optional OCR unit.

Scan to email—other features

Email addresses stored in HDD
2,000—maximum email addresses
100 groups—maximum registered group addresses
500 addresses in one group—maximum

Maintain email addresses in HDD
Via the operation panel, Web Image Monitor

Enter email addresses on the operation panel
Maximum 100 destinations per job

Search email addresses in HDD
By name and email address

LDAP
Supported

Maximum number of email addresses per send
500—from HDD
100—direct input
100—via LDAP

Attention
To, Cc, Bcc

Scan to email size
128–102,400 KB—with restriction, default 2,048 KB
975 MB—without restriction

Program user settings
Up to 25 programs

Divide and send email
Divide by page or by size; default divide by size

Resend
Yes, No; default Yes

Scan to folder

Protocols
SMB, FTP

Security
Client folder logon (logon name and password), encryption of logon name and password during transmission

Scan resolution
150, 200—default, 300, 400, 600 dpi

Search client folder
SMB—browsing directly to the designated folder
FTP—by folder name

File types
Single-page
TIFF, JPEG, PDF, high compression PDF, PDF/A, Searchable PDF

Multi-page
TIFF, PDF, high compression PDF, PDF/A, Searchable PDF

Note: Searchable PDF supported by optional OCR unit.

Scan to folder—other features

Registered client folders in HDD
Maximum 2,000 folders

Maintain folder addresses in HDD
Via operation panel, Web Image Monitor

Destination folder address input via operation panel
Supported
SMB—Network path->Client folder->Password
FTP—Server->Network path->User account->Password

Maximum client folders/PCs per send
50 folders

Destination combination
Supported

Maximum group addresses
100—destinations from a maximum of 50 folders

Input subject
Not supported

Scan to file size
Up to 2,000 MB

File size when combined with Scan to email
128–102,400 KB—default 2,048 KB, setting range
975 MB—available range

Program user settings
Up to 25 programs

Divide and send email
Divide by page or by size; default divide by size

Resend
Yes, No; default Yes

TWAIN scanning—other features

Scanning speed
Black and white
80 mm/second—600 dpi
160 mm/second–200 dpi

Colour
26.7 mm/second—600 dpi
40 mm/second—200 dpi

Image adjustment
Brightness, Contrast, Threshold, Gamma Adjustment, Halftone Pattern

Operating systems
32-bit
Windows Server 2003, Windows Server 2008, Windows 7, Windows 8, Windows 8.1

64-bit
Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012 R2, Windows 7, Windows 8, Windows 8.1

TWAIN scanning

Resolution
150–2,400 dpi—black and white
100–2,400 dpi—colour

Scan mode
Standard, Diazo

Other scan features

Gradation—1-bit in black and white, 8-bit in greyscale, 8-bit/24-bit in colour

DataOverwriteSecurity System (DOSS) – Standard: Yes
DataOverwriteSecurity System (DOSS) – Optional: Type M19—supports the requirements for Common Criteria certification, conforming to IEEE 2600.1
Encryption: Authentication password encryption
Encrypted communication over Secure Sockets Layer (SSL)
HDD data encryption
Locked print data encryption
Address book encryption
Encryption of data sent via Scan to email (S/MIME)
PDF encryption (password and transmission)
Authentication: Administrator authentication
User authentication—Windows (via Kerberos), LDAP, basic, user code
802.1x wired authentication
Other security features: Secure Internet Protocol communication (IPsec)
SNMPv3 support
Network protocol on/off
Restrict use of destination for ‘scan to’ functions
Permit adding destination for ‘scan to’ destinations

Windows: 32- and 64-bit
Windows Vista
Windows 7
Windows Server 2003
Windows Server 2008
Windows 8
Windows 8.1

64-bit
Windows Server 2008 R2
Windows Server 2012 R2
Citrix support: Citrix Presentation Server 4.5
Citrix XenApp 5, Citrix XenApp 6
Macintosh: OS X Native v10.7 or later
Other supported environments: Novell
NetWare 4.x, 5.0, 6.0, 6.5
OES 1.0, 2.0

Standard: @Remote Embedded
Web Image Monitor
Device SDK
Optional: @Remote Office
Device Manager NX
PrintCopyTool
Global Scan NX (v2.4.1 will be supported after the device release)

Power source: 220–240 V, 50/60 Hz, 8 A
Power consumption: 180 W or less—maximum power
1.2 W or less—Energy Saver Mode (Sleep Mode)
Warm-up time: 40 seconds or less
Timers: Auto Off, Energy Saver, Panel Off, System Reset
Recovery time: 7 seconds or less—from Energy Saver Mode (Sleep Mode)
Sound power level: 40 dB or less—standby
68 dB or less—copying
Sound pressure level: 36 dB or less—standby
60 dB or less—copying
Emission levels: Styrene—1.8 mg/h or less
Reduction of environmentally sensitive materials: Complies with Reduction of Hazardous Substances (RoHS) requirements
Environmental standards: Energy Star
R&TTE—2.4 GHz, 5 GHz
C-Tick—Australia
C-Tick RCM—New Zealand
EN62311 (CE marking)
RoHS
EURoHS
China RoHS
REACH
Directive 2006/66/EC
Directive 94/62/EC
WEEE
India E-waste
RECSIS
Safety standards: IEC60950-1 (CB Authentication)
EN60950-1
EAC (CU-TR)
CCC (GB4943)
Electromagnetic Compatibility (EMC) standards: EMC
EN55022 (Class A)
EN55024
EN61000
EAC (CU-TR)
EN61000-3-2
EN61000-3-3
RMC Mark (AS/NZS CISPR22)
C-Tick—Australia, New Zealand
CCC (GB4943, GB17625.1)
Identification of plastic components: All plastic components weighing more than 25 g are identified in accordance with DIN548490 and ISO11469.

News & Events

Keep up to date

News

08 Apr

Virtual Meeting Room, BOOK now at RM10 for 3 hours

16 Mar

30 DAYS FREE TRIAL for Ricoh UCSA Virtual Meeting Room

Events
